F Din X Mbspp Es Seal

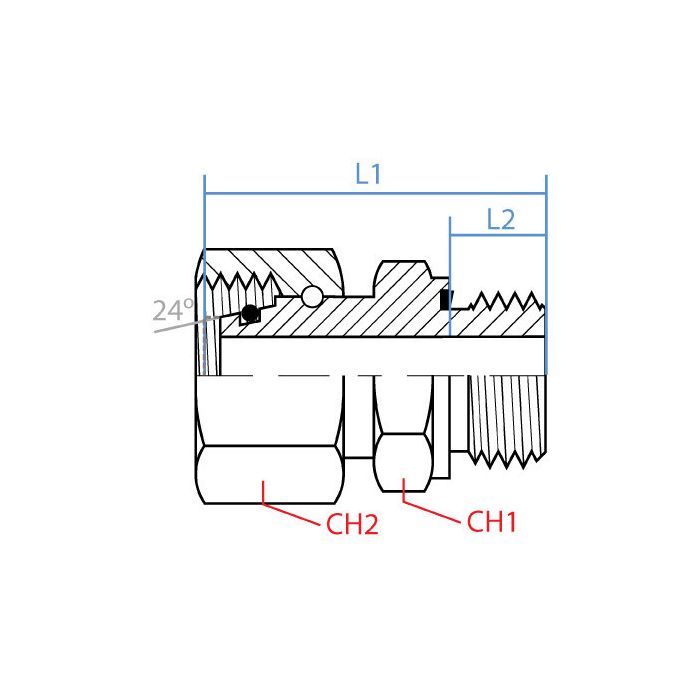

CH1 Width 27mm	CH2 Width 30mm	L1 Length 51mm	L2 Length 14mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M24 X 1.5	Side 1 Gender F	Side 1 Size S16	Side 1 Type Din Tube	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5302S-16-08	Product Weight 0.42 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a hydraulic line running metric DIN fittings that needs to tie into a BSPP-ported valve block. This adapter do that job straight out of the box?

Question by: Dwayne M on Feb 22, 2026, 6:12 PM

That's what it's built for. One end is a female DIN tube fitting sized at M24 x 1.5 in a size 16 configuration, and the other end is a male BSPP thread at G 1/2-14. So if your tube line is DIN S16 and your valve block has a 1/2 inch BSPP port, this fitting bridges those two standards directly with no extra pieces needed.

Answer by: Customer Support on Feb 24, 2026, 6:08 AM

What size wrench do I need for this thing?

Question by: Norm M on Mar 4, 2026, 3:38 PM

You'll need a 27mm wrench for one end and a 30mm wrench for the other.

Answer by: Customer Support on Mar 6, 2026, 9:59 AM
