F Din X Mbspp Es Seal 5302S-12-08

Specifications

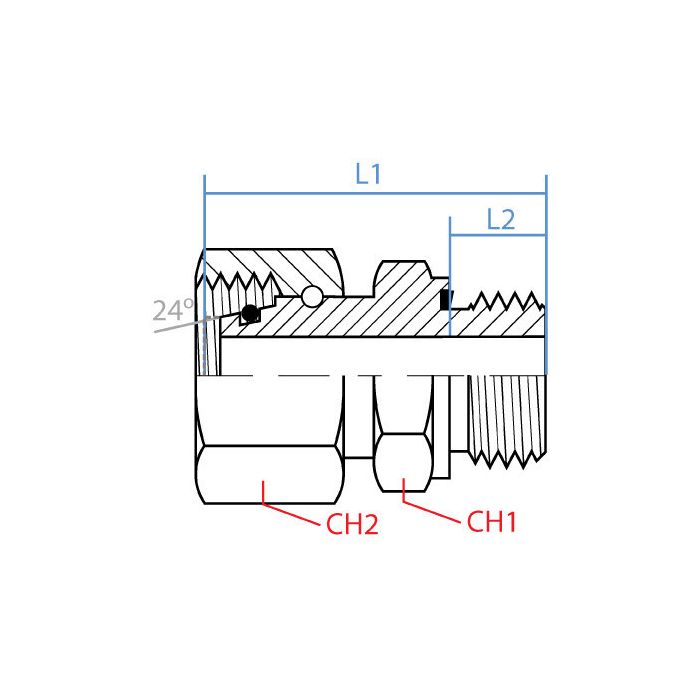

CH1 Width 27mm	CH2 Width 24mm	L1 Length 48.5mm	L2 Length 14mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M20 X 1.5	Side 1 Gender F	Side 1 Size S12	Side 1 Type Din Tube	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5302S-12-08	Product Weight 0.30 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to hook a M20 x 1.5 DIN tube line up to a G 1/2 BSPP port. is this the right adapter?

Question by: Vince B on Jul 26, 2025, 8:40 AM

For that mix of ends, it matches up. Side 1 is a female DIN tube connection called out as M20 x 1.5 (S12), and side 2 is a male BSPP thread called out as G 1/2 - 14.

Answer by: Customer Support on Jul 27, 2025, 9:40 AM

Got a system running M20 x 1.5 DIN tube fittings on one end and need to tie into a G 1/2 BSPP port on the other, this the right adapter for that?

Question by: Peggy R on Aug 6, 2025, 8:57 PM

That's what this fitting is built for. One side is a female M20 x 1.5 DIN tube connection and the other is a male G 1/2 - 14 BSPP thread, so it bridges those two standards in a single straight body. Steel construction, 48.5mm overall length, and the ES seal designation means it's set up for leak-free operation under pressure.

Answer by: Customer Support on Aug 8, 2025, 6:03 PM

Will this fitting hold up okay in a hydraulic system that runs pretty hot?

Question by: Dwight P on Dec 13, 2025, 1:03 PM

The steel construction of this fitting should provide good durability in demanding industrial environments.

Answer by: Customer Support on Dec 15, 2025, 6:11 AM
