F Din X Mbspp Es Seal

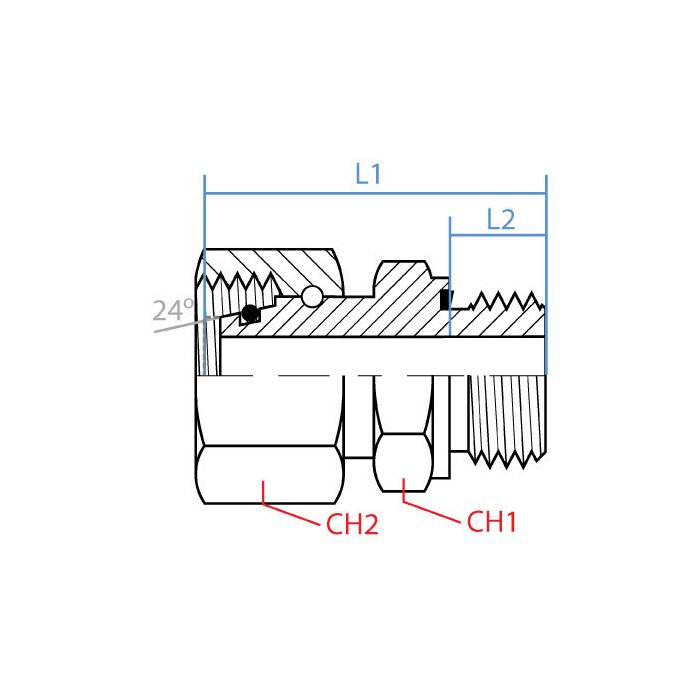

CH1 Width 19mm	CH2 Width 19mm	L1 Length 41.5mm	L2 Length 12mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M16 X 1.5	Side 1 Gender F	Side 1 Size S08	Side 1 Type Din Tube	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5302S-08-04	Product Weight 0.15 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to hook a DIN tube fitting into a BSPP port, is this the right adapter for that?

Question by: Marvin F on Nov 16, 2025, 9:15 PM

For tying those two standards together, it’s a straight steel adapter with a female DIN tube end (M16 x 1.5, S08 tube size) and a male BSPP end (G 1/4 - 19). It’s meant for hydraulic setups where a DIN metric tube connection has to land in a BSPP threaded port.

Answer by: Customer Support on Nov 18, 2025, 6:33 AM
