F Din X Mbspp Es Seal

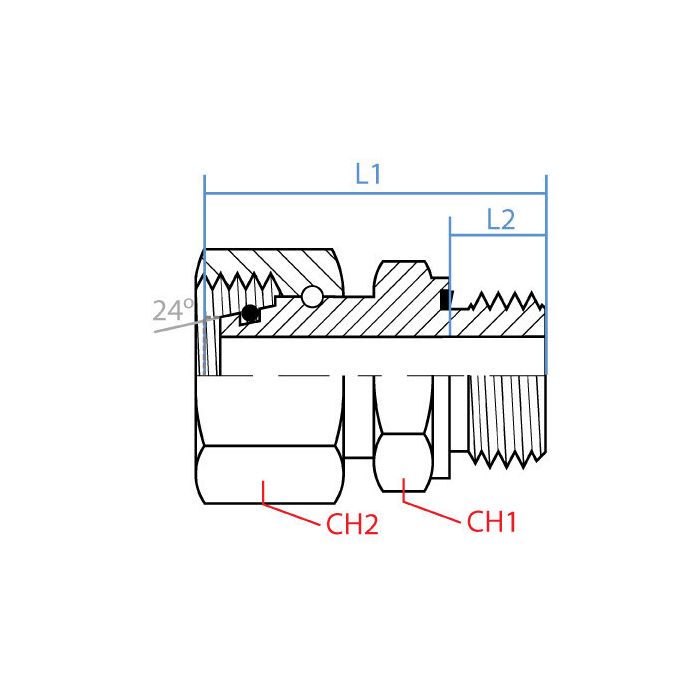

CH1 Width 41mm	CH2 Width 46mm	L1 Length 53mm	L2 Length 18mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M36 X 2.0	Side 1 Gender F	Side 1 Size L28	Side 1 Type Din Tube	Side 2 Callout G 1 - 11	Side 2 Gender M	Side 2 Size 1"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5302L-28-16	Product Weight 0.70 lbs

Product Questions & Answers 2

Product Questions & Answers

got a tube nut that’s M36 x 2.0 on the DIN side, is this the right straight adapter to get over to a 1 inch BSPP male?

Question by: Wade P on Aug 10, 2025, 11:45 AM

Match it up by the thread callouts. Side 1 is a female DIN tube connection marked M36 x 2.0 with size L28, and side 2 is a male BSPP marked G 1 - 11 in a 1 inch size. It is a straight steel Adaptall fitting with an ES seal on the BSPP end.

Answer by: Customer Support on Aug 12, 2025, 7:47 AM

What kind of hydraulic applications is this steel fitting good for?

Question by: Vince S on Oct 28, 2025, 5:01 PM

This fitting is constructed from steel, offering durability and reliability in demanding hydraulic applications.

Answer by: Customer Support on Oct 30, 2025, 6:09 AM
