F Din X Mbspp Es Seal

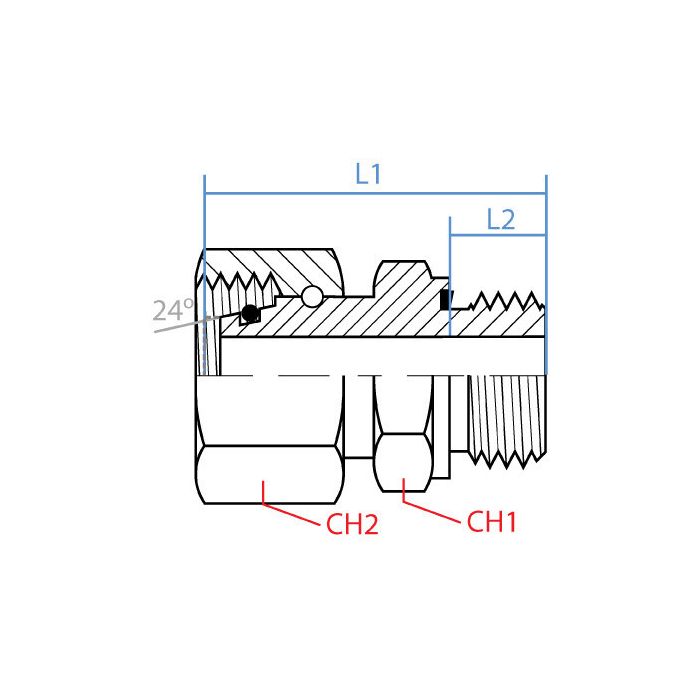

CH1 Width 32mm	CH2 Width 36mm	L1 Length 48.5mm	L2 Length 16mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M30 X 2.0	Side 1 Gender F	Side 1 Size L22	Side 1 Type Din Tube	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5302L-22-12	Product Weight 0.48 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting hold up okay in a hydraulic system that sees pretty consistent use?

Question by: Ross F on May 23, 2025, 3:08 PM

With its durable steel construction, this Adaptall fitting is well-suited for heavy-duty use and should provide excellent resistance to wear and tear in demanding hydraulic systems.

Answer by: Customer Support on May 25, 2025, 8:05 AM

fitting's got a female M30 x 2.0 on one end and I need to tie into a 3/4 BSPP male port on my equipment, this the right one to do that?

Question by: Wayne M on Apr 9, 2025, 9:49 PM

That's exactly what this fitting does. One side is a female DIN tube connection sized M30 x 2.0, and the other side is a male G 3/4-14 BSPP thread. As long as your tube and port match those specs, this straight adapter will bridge the two without any modification needed.

Answer by: Customer Support on Apr 11, 2025, 11:44 AM
