F Din X Mbspp Es Seal 5302L-15-08

Specifications

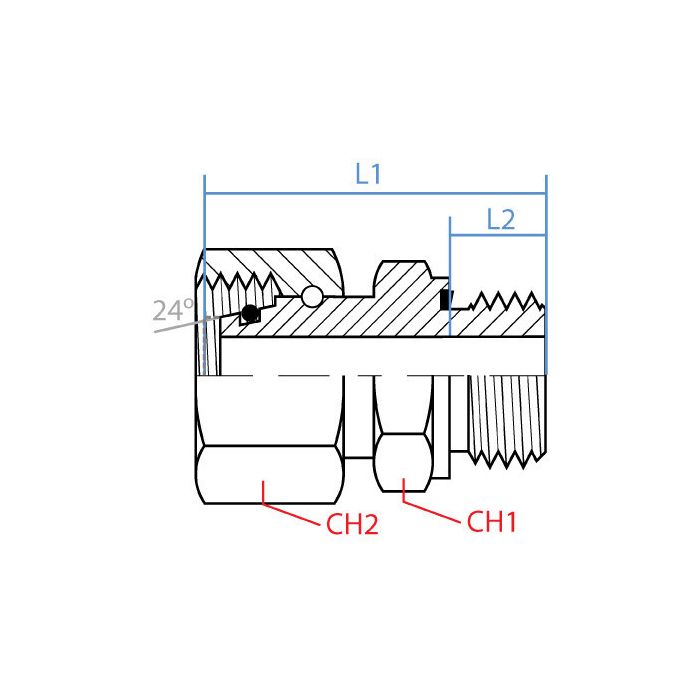

CH1 Width 27mm	CH2 Width 27mm	L1 Length 46mm	L2 Length 14mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M22 X 1.5	Side 1 Gender F	Side 1 Size L15	Side 1 Type Din Tube	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5302L-15-08	Product Weight 0.33 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to hook a DIN tube end to a 1/2 BSPP port, is this the right adapter?

Question by: Cheryl M on Jan 8, 2026, 7:28 PM

For that DIN to BSPP connection, it matches a female DIN tube end in M22 x 1.5 (L15) on one side and a male BSPP G 1/2 - 14 (1/2 inch) on the other, with an ES seal on the BSPP end.

Answer by: Customer Support on Jan 10, 2026, 8:15 AM

got a DIN tube fitting on my hydraulic line and need to tie into a BSPP port, this straight adapter gonna get that done?

Question by: Lee G on Jan 21, 2026, 1:21 PM

That's what this one's built for. One end is a female DIN tube connection with an M22 x 1.5 thread and an L15 size rating. The other end is a male BSPP at G 1/2-14, which is your standard 1/2" BSPP port. Both ends use a 27mm wrench flat, so you're working with the same size on both sides during installation. The ES seal on the BSPP end handles the sealing at that connection. Steel construction throughout.

Answer by: Customer Support on Jan 23, 2026, 6:11 AM

Will this here adapter hold up okay for connecting a DIN fitting to, say, a hydraulic pump with a BSPP port?

Question by: Carl T on Mar 26, 2026, 7:23 PM

This straight steel adapter is designed specifically for connecting DIN tube ends to BSPP ends, so it should work well for that application.

Answer by: Customer Support on Mar 28, 2026, 6:34 AM
