F Din X Mbspp Es Seal

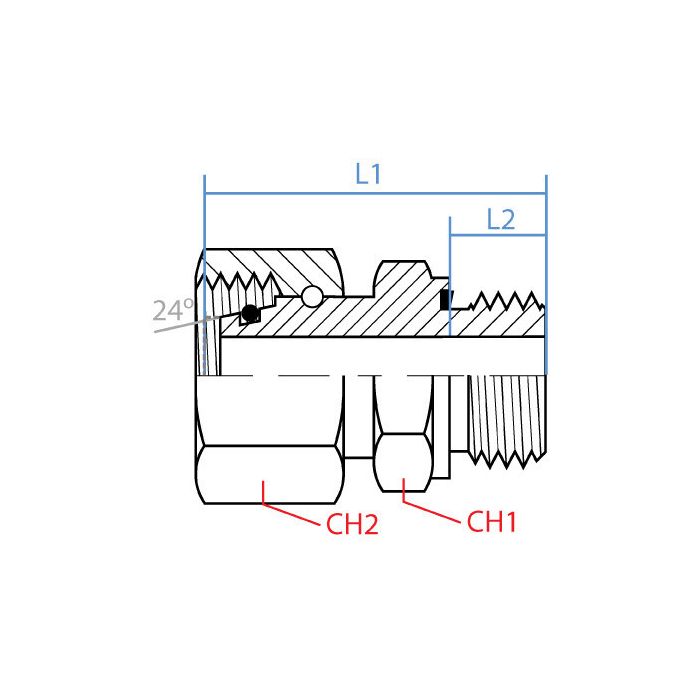

CH1 Width 22mm	CH2 Width 22mm	L1 Length 46mm	L2 Length 12mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender F	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5302L-12-06	Product Weight 0.22 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that’s female DIN M18 x 1.5. is this the right adapter to go over to a 3/8 BSPP male?

Question by: Tammy R on May 9, 2025, 1:57 PM

For a DIN tube female M18 x 1.5 on one side and a male BSPP G 3/8 - 19 on the other, this straight steel fitting matches those thread callouts. Side 1 is female DIN tube (M18 x 1.5, L12) and side 2 is male BSPP (G 3/8 - 19, 3/8).

Answer by: Customer Support on May 11, 2025, 6:27 AM

got a system running BSPP on one end and DIN tube fittings on the other, this the right piece to bridge that gap?

Question by: Peggy P on Apr 25, 2025, 2:55 PM

That's exactly what this fitting handles. One side is a female DIN tube connection at M18 x 1.5, and the other is a male BSPP at G 3/8 - 19. Both ends measure 22mm across, and the overall length is 46mm, so it's a compact adapter that ties those two thread standards together without a bunch of extra hardware in between.

Answer by: Customer Support on Apr 27, 2025, 6:07 AM
