F Din X Mbspp Es Seal 5302L-12-04

Specifications

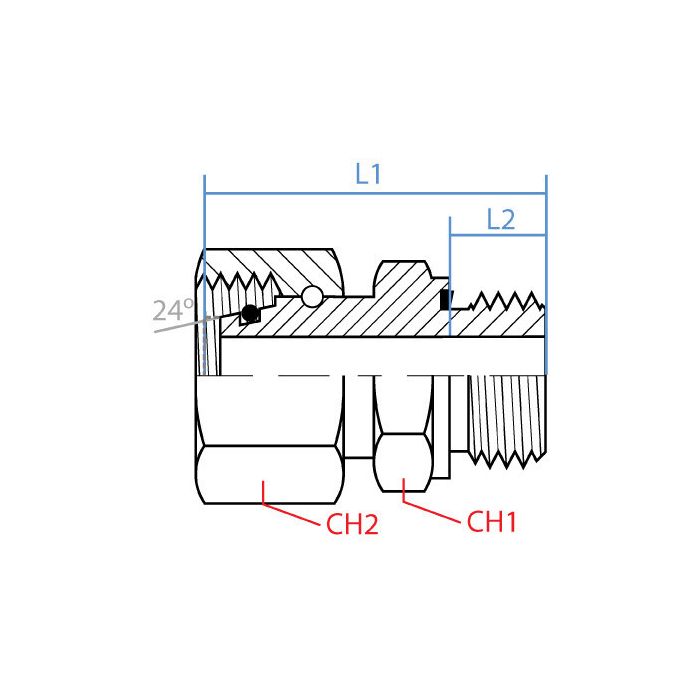

CH1 Width 19mm	CH2 Width 22mm	L1 Length 39.5mm	L2 Length 12mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender F	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5302L-12-04	Product Weight 0.15 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a European machine here with M18 x 1.5 metric tube fittings and need to tie into a 1/4 inch BSPP port on some newer equipment. this adapter gonna bridge that gap straight across?

Question by: Vince R on Aug 20, 2025, 1:25 PM

That's exactly the crossover this fitting handles. One end is a female DIN tube port sized for M18 x 1.5 metric connections, which is your L12 tube size, and the other end is a 1/4 inch male BSPP thread conforming to the G 1/4 - 19 standard. The configuration is straight, so there's no angle change in the line. Steel construction throughout, and the elastomeric seal on the DIN end gives you a face seal at that connection rather than relying on thread engagement alone to hold pressure. If both ports on your equipment match those specs, this adapter fits the bill.

Answer by: Customer Support on Aug 21, 2025, 2:16 PM

trying to hook an M18 x 1.5 DIN tube port up to a 1/4 BSPP male, is that what this adapter does?

Question by: Patty W on Jul 20, 2025, 6:26 AM

On a practical level, it is a straight steel adapter that goes from a female DIN tube port (M18 x 1.5, L12) on one end to a male BSPP port (G 1/4 - 19) on the other.

Answer by: Customer Support on Jul 22, 2025, 6:42 AM
