F Din X Mbspp Es Seal

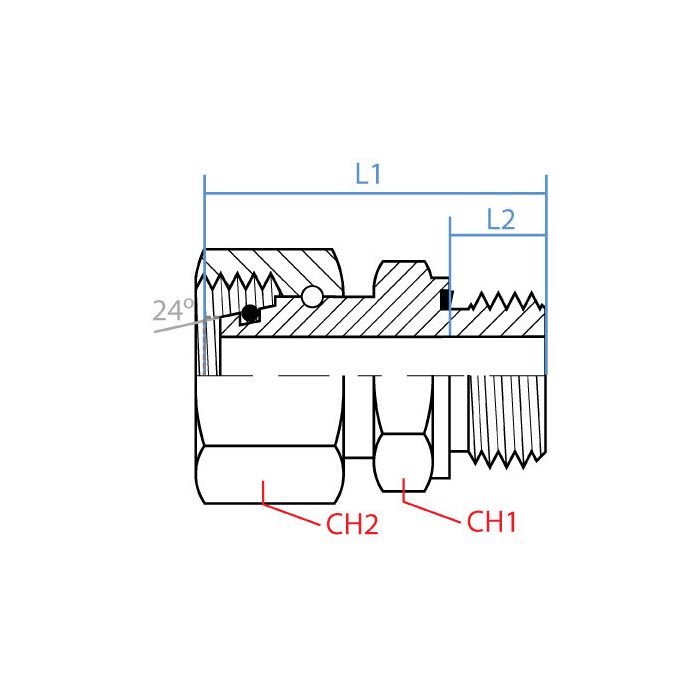

CH1 Width 19mm	CH2 Width 19mm	L1 Length 39.5mm	L2 Length 12mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M16 X 1.5	Side 1 Gender F	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5302L-10-04	Product Weight 0.13 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to hook a DIN tube line to a 1/4 BSPP port, is this the right adapter?

Question by: Vince W on Dec 12, 2025, 1:00 PM

For that kind of hookup, this fitting is a straight steel Adaptall adapter with a female DIN tube connection on one end and a male BSPP on the other. Side 1 is M16 x 1.5 (DIN tube, size L10) and side 2 is G 1/4 - 19 (BSPP, 1/4 inch).

Answer by: Customer Support on Dec 14, 2025, 6:15 AM
