F Din X Mbspp Es Seal 5302L-08-04

Specifications

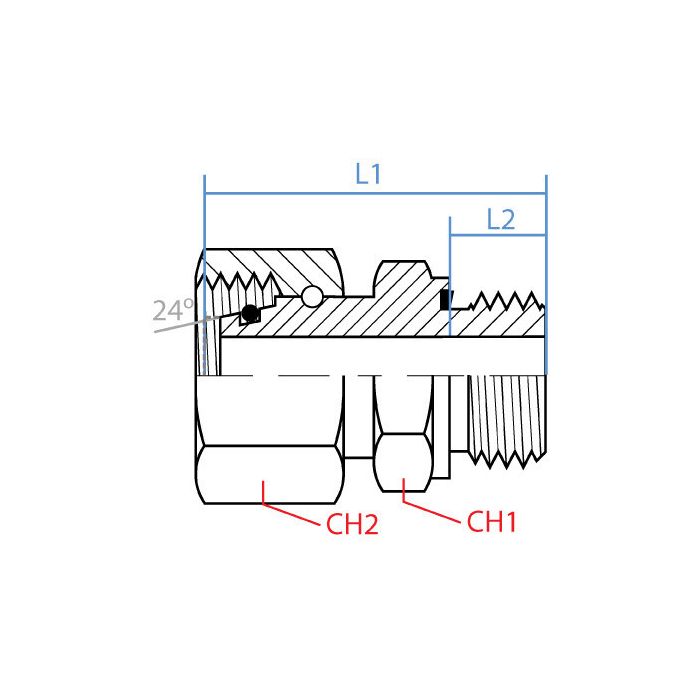

CH1 Width 19mm	CH2 Width 17mm	L1 Length 41.5mm	L2 Length 12mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M14 X 1.5	Side 1 Gender F	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5302L-08-04	Product Weight 0.13 lbs

Product Questions & Answers 3

Product Questions & Answers

I need somethin' that'll hold up in a hydraulic setup. Is this adapter pretty tough?

Question by: Roger B on Aug 18, 2025, 6:36 PM

Yes, this adapter is manufactured by Adaptall and is constructed from steel, so it's designed to be durable in demanding industrial environments.

Answer by: Customer Support on Aug 20, 2025, 10:58 AM

what's the thread setup on both ends of this adapter? trying to figure out if it'll work with what I already got on the machine

Question by: Hubert S on Apr 27, 2025, 1:22 PM

Side 1 is a female M14 x 1.5 DIN tube connection and Side 2 is a male G 1/4 - 19 BSPP. So if you've got a DIN tube fitting on one end and a BSPP port on the other, this adapter bridges those two together in a straight configuration. The overall length runs 41.5mm, with channel widths of 19mm on the DIN side and 17mm on the BSPP side.

Answer by: Customer Support on Apr 28, 2025, 5:26 PM

got a hose end with female M14 x 1.5 DIN tube, will this adapter mate up to a male G 1/4-19 BSPP port?

Question by: Roger P on May 30, 2025, 6:27 PM

For connecting those two thread styles, it’s a straight steel adapter with a female M14 x 1.5 DIN tube end on Side 1 and a male G 1/4 - 19 BSPP end on Side 2, made for a secure, leak-resistant connection.

Answer by: Customer Support on Jun 1, 2025, 6:26 AM
