Female Din Soft Seal Union 5300S-16

Specifications

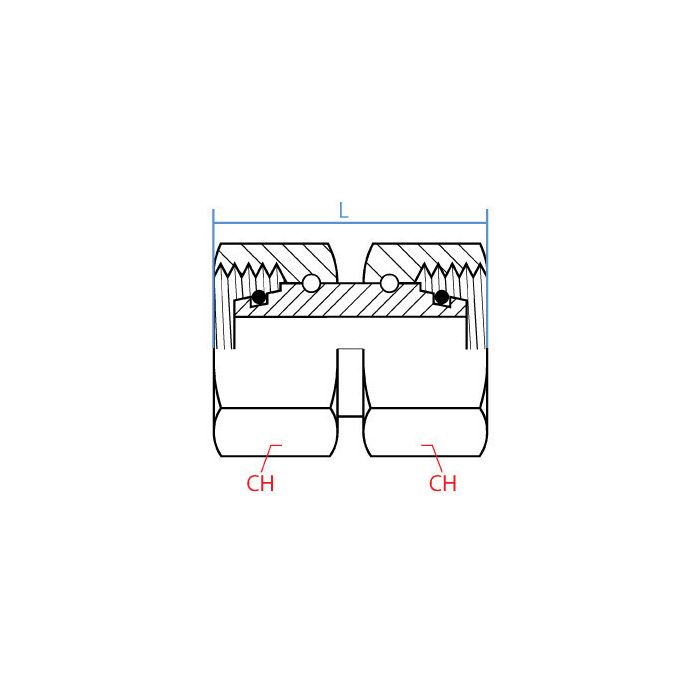

CH1 Width 30mm	CH2 Width 24mm	L Length 50.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M24 X 1.5	Side 1 Gender F	Side 1 Size S16	Side 1 Type Din Tube	Side 2 Callout M24 X 1.5	Side 2 Gender F	Side 2 Size S16	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number 5300S-016	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5300S-16	Product Weight 0.38 lbs

Product Questions & Answers 3

Product Questions & Answers

So, this here is just a straight union, right? No adjustable ends or anything fancy?

Question by: Hank B on May 12, 2025, 2:45 PM

That's correct. This is a straight, steel Female Din Soft Seal Union with no adjustable ends or check valves. It's designed for installations needing a reliable, direct connection.

Answer by: Customer Support on May 14, 2025, 1:30 PM

got a DIN tube setup with S16 ends, is this union the right thread size on both sides?

Question by: Melvin R on Dec 21, 2025, 11:20 AM

For a straight DIN tube union with S16 connections, both ends on this one are female M24 x 1.5, so it matches an S16 DIN tube thread on each side.

Answer by: Customer Support on Dec 22, 2025, 1:02 PM

Got a busted union on a DIN tube line running M24 x 1.5 fittings, this the right part to swap it out with?

Question by: Kirk M on Jul 22, 2025, 6:41 PM

Yeah, that's the one. Both ends on this union are M24 x 1.5 female DIN tube connections sized at S16, so if your existing line runs those specs, this'll drop right in. It's a straight union with no adjustable ends, so as long as your setup doesn't need any angularity or repositioning at the joint, you're looking at a solid match.

Answer by: Customer Support on Jul 24, 2025, 6:20 AM
