Female Din Soft Seal Union

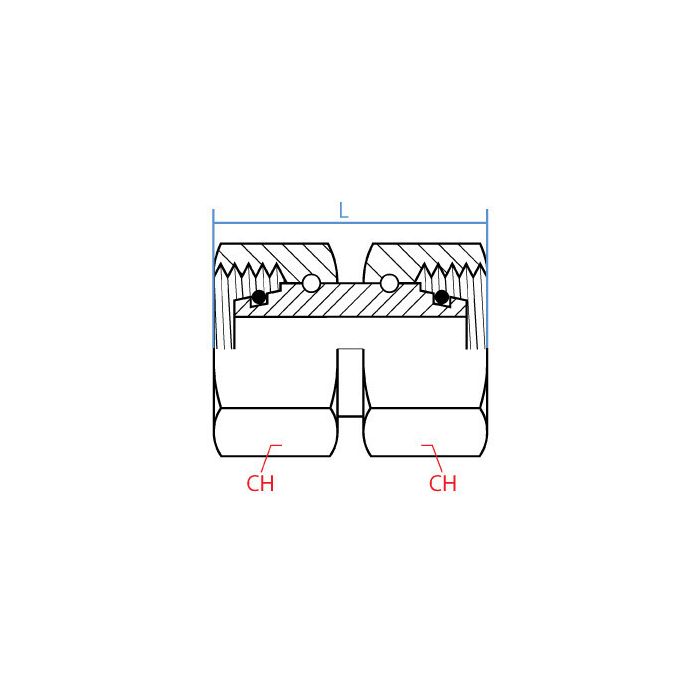

CH1 Width 24mm	CH2 Width 19mm	L Length 48.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M20 X 1.5	Side 1 Gender F	Side 1 Size S12	Side 1 Type Din Tube	Side 2 Callout M20 X 1.5	Side 2 Gender F	Side 2 Size S12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5300S-12	Product Weight 0.28 lbs

Product Questions & Answers 2

Product Questions & Answers

Both ends are female DIN tube connections on this thing, right? Just want to make sure before I go ordering a bunch of 'em.

Question by: Wade S on Oct 21, 2025, 6:25 PM

Correct on both counts. Each end is a female DIN tube connection, M20 x 1.5 thread, S12 size. The straight body runs 48.3mm in length, and the two channel widths are 24mm on one side and 19mm on the other. As long as your lines are set up for that DIN tube configuration, you should be good to go.

Answer by: Customer Support on Oct 23, 2025, 6:30 AM

What kind of steel is this union made from?

Question by: Patty T on Feb 9, 2026, 7:56 AM

Crafted from high-quality steel, this union is designed for long-lasting durability in demanding hydraulic systems.

Answer by: Customer Support on Feb 11, 2026, 6:26 AM
