Female Din Soft Seal Union 5300S-10

Specifications

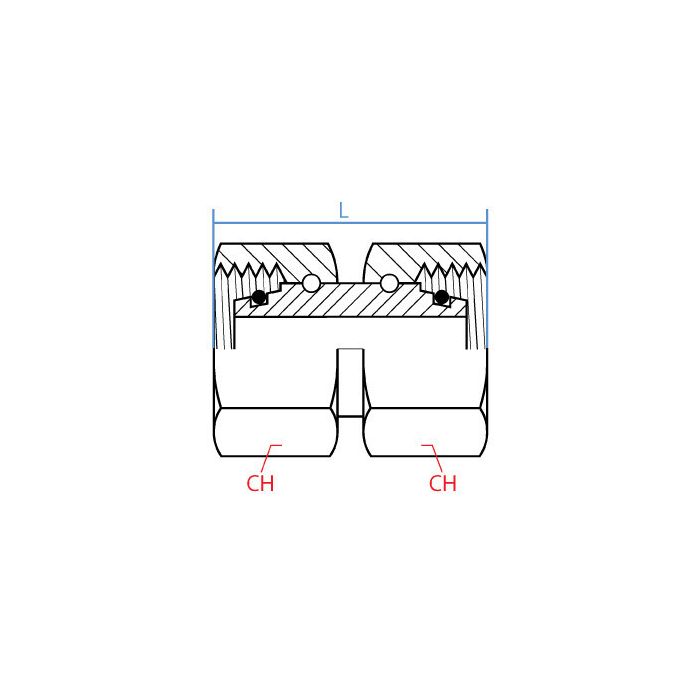

CH1 Width 22mm	CH2 Width 16mm	L Length 38mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender F	Side 1 Size S10	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender F	Side 2 Size S10	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5300S-10	Product Weight 0.18 lbs

Product Questions & Answers 3

Product Questions & Answers

both ends are M18 x 1.5 DIN tube connections, right? just want to make sure before i order a couple of these for a retrofit job

Question by: Dustin T on Jun 18, 2025, 1:22 PM

Correct on both counts. Each side of this union is an M18 x 1.5 DIN tube connection, female gender, sized at S10. So you're working with matching connections end to end, which makes it a straight-through union rather than an adapter between two different thread types. For a retrofit where both sides of your line are already DIN tube fittings at that size, this should drop right in without any conversion needed.

Answer by: Customer Support on Jun 20, 2025, 6:02 AM

What kinda steel is this union made from?

Question by: Hank S on Jan 19, 2026, 7:02 AM

Crafted from robust steel, this union is designed for reliable performance in demanding industrial applications.

Answer by: Customer Support on Jan 20, 2026, 9:51 PM

got a tight spot on a hydraulic run, how long is this union end to end?

Question by: Rusty C on Sep 24, 2025, 5:29 PM

At 38mm long overall, it stays pretty compact, and it uses 22mm and 16mm wrench flats (Ch1 and Ch2) for tightening.

Answer by: Customer Support on Sep 26, 2025, 6:54 AM
