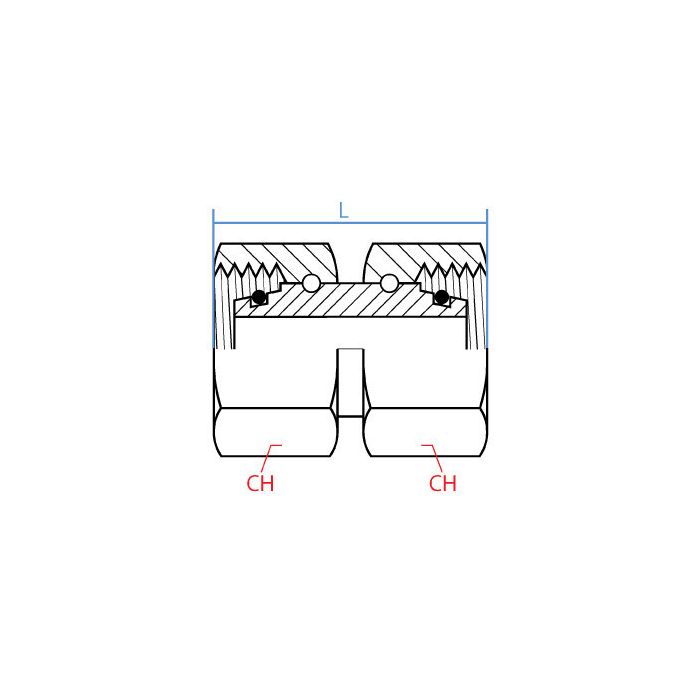

Female Din Soft Seal Union

CH1 Width 19mm	CH2 Width 16mm	L Length 73.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M16 X 1.5	Side 1 Gender F	Side 1 Size S08	Side 1 Type Din Tube	Side 2 Callout M16 X 1.5	Side 2 Gender F	Side 2 Size S08	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5300S-08	Product Weight 0.16 lbs

Product Questions & Answers 1

Product Questions & Answers

got two DIN tube ends that are both M16 x 1.5, will this union tie em together or am I missing something

Question by: Pete A on Jul 15, 2025, 12:54 PM

For joining two matching DIN tube ends inline, this union is set up with female DIN tube connections on both sides, each M16 x 1.5 and size S08, so it is meant to connect two same size DIN tube ends together.

Answer by: Customer Support on Jul 17, 2025, 8:22 AM
