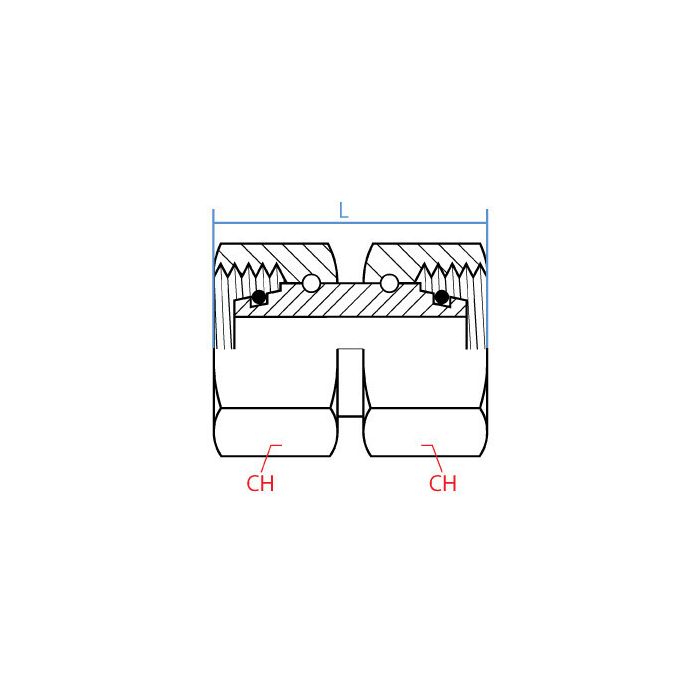

Female Din Soft Seal Union

CH1 Width 17mm	CH2 Width 12mm	L Length 38.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M14 X 1.5	Side 1 Gender F	Side 1 Size S06	Side 1 Type Din Tube	Side 2 Callout M14 X 1.5	Side 2 Gender F	Side 2 Size S06	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5300S-06	Product Weight 0.12 lbs

Product Questions & Answers 2

Product Questions & Answers

both ends on this union are the same size, M14 x 1.5? just want to make sure before I order

Question by: Jimmy R on Feb 10, 2026, 5:35 PM

Both sides are identical on this one. Each end is a female DIN tube connection, S06 size, M14 x 1.5 thread. So if you need to join two lines of that same spec, it connects them straight through without any size change.

Answer by: Customer Support on Feb 12, 2026, 6:25 AM

So this thing's got two female ends, both the same size? Just wanna make sure before I order.

Question by: Melvin B on Mar 26, 2026, 8:38 PM

That's right, this union features two female DIN tube ends, both sized at S06 (M14 x 1.5).

Answer by: Customer Support on Mar 28, 2026, 7:34 PM
