Female Din Soft Seal Union

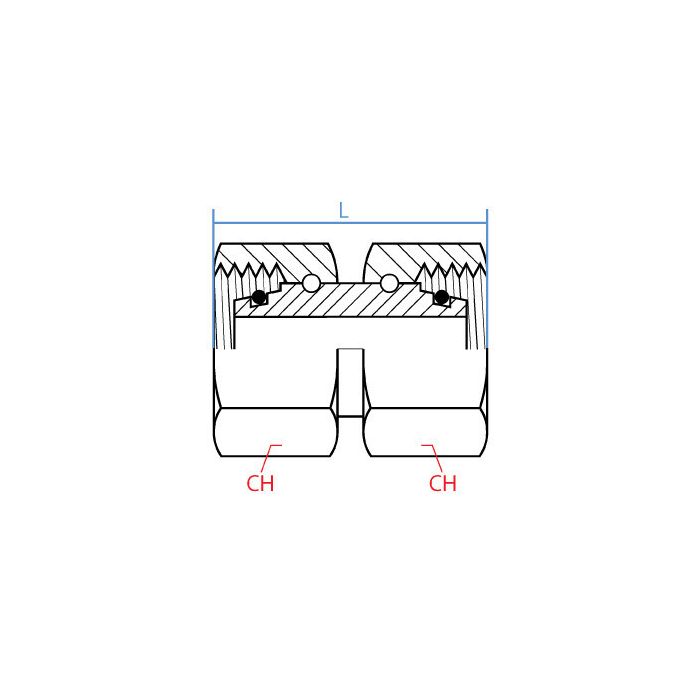

CH1 Width 36mm	CH2 Width 30mm	L Length 56.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M30 X 2.0	Side 1 Gender F	Side 1 Size L22	Side 1 Type Din Tube	Side 2 Callout M30 X 2.0	Side 2 Gender F	Side 2 Size L22	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5300L-22	Product Weight 0.64 lbs

Product Questions & Answers 2

Product Questions & Answers

both sides are M30 x 2.0 female DIN -- does that mean this'll work as a straight union connecting two DIN tube lines without any adapters in between?

Question by: Brett S on Apr 6, 2025, 7:22 PM

Correct setup for that application. Both ends are female DIN tube connections, M30 x 2.0 thread on each side, and the straight configuration means there's no angle or offset involved. You're getting a direct inline connection between two L22 DIN tube lines. Steel construction holds up well in standard hydraulic environments, and the soft seal on both ends handles leak prevention without needing additional sealing compounds in most setups.

Answer by: Customer Support on Apr 8, 2025, 6:25 AM

got a straight union with M30 x 2.0 on both ends, female to female, is that what this 5300L-22 is?

Question by: Pete S on Oct 5, 2025, 12:01 PM

For fitment, it’s a straight female to female DIN tube union with M30 x 2.0 threads on both sides, sized L22 on each end.

Answer by: Customer Support on Oct 6, 2025, 3:23 PM
