Female Din Soft Seal Union

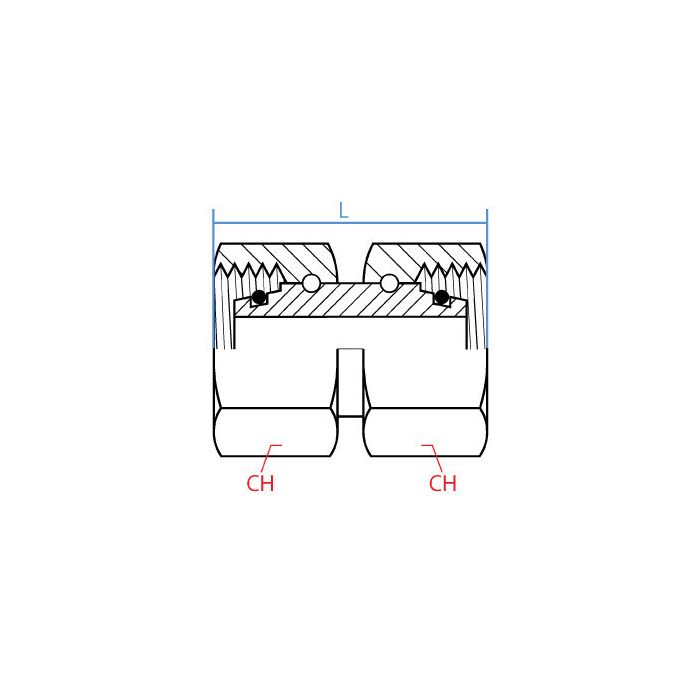

CH1 Width 27mm	CH2 Width 22mm	L Length 48.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M22 X 1.5	Side 1 Gender F	Side 1 Size L15	Side 1 Type Din Tube	Side 2 Callout M22 X 1.5	Side 2 Gender F	Side 2 Size L15	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5300L-15	Product Weight 0.40 lbs

Product Questions & Answers 2

Product Questions & Answers

both ends are M22 x 1.5 female DIN, so does that mean i can run the same tube fitting on either side without worrying about orientation?

Question by: Johnny S on Jun 29, 2025, 9:44 PM

Correct on all counts. Both sides carry the same L15 size designation and the same M22 x 1.5 female DIN thread, so there is no wrong end when you're making up the connection. You can pull it off the shelf, drop it in line, and not spend any time figuring out which side faces which direction. That symmetry also makes it a little easier to keep inventory simple if you're running a lot of DIN tube lines through a system.

Answer by: Customer Support on Jul 1, 2025, 6:59 AM

What size wrench do I need for this union? I've got a couple different sizes of lines I'm working with.

Question by: Rex H on Jan 15, 2026, 12:51 PM

You'll need two different size wrenches. One side of the union has a 27mm wrench width, while the other is 22mm.

Answer by: Customer Support on Jan 17, 2026, 6:02 AM
