Female Din Soft Seal Union 5300L-12

Specifications

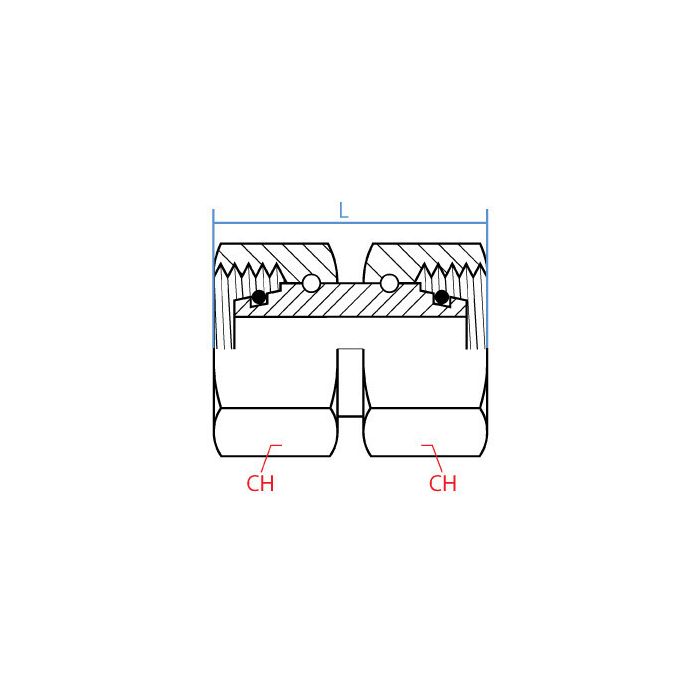

CH1 Width 22mm	CH2 Width 16mm	L Length 38.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender F	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender F	Side 2 Size L12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5300L-12	Product Weight 0.18 lbs

Product Questions & Answers 3

Product Questions & Answers

both ends on this union are female, right? trying to connect two DIN tube ends inline and want to make sure i ain't gotta flip anything around or add an adapter

Question by: Shawn O on Apr 21, 2025, 5:17 PM

Correct on both counts. Both sides are female, sized at L12, and both carry the same M18 x 1.5 DIN tube thread. The fitting is fully symmetrical, so there's no orientation to worry about. Drop it in line between two matching DIN tube ends and you're good to go.

Answer by: Customer Support on Apr 22, 2025, 6:16 PM

trying to hook two DIN tube ends together inline, is this the union that takes M18 x 1.5 on both sides?

Question by: Cheryl P on Feb 20, 2026, 8:16 AM

For an inline tube to tube connection, it joins two DIN tube ends that are both M18 x 1.5. Both ends are female and both sides are size L12, so it is a straight, symmetrical union.

Answer by: Customer Support on Feb 21, 2026, 2:09 PM

So this thing just connects two tubes, right? Both the same size?

Question by: Bonnie R on Oct 24, 2025, 8:42 AM

that's the idea. It's made to join two M18 x 1.5 DIN tubes together using those soft seals. And you're right, both sides are the same L12 size.

Answer by: Customer Support on Oct 26, 2025, 6:20 AM
