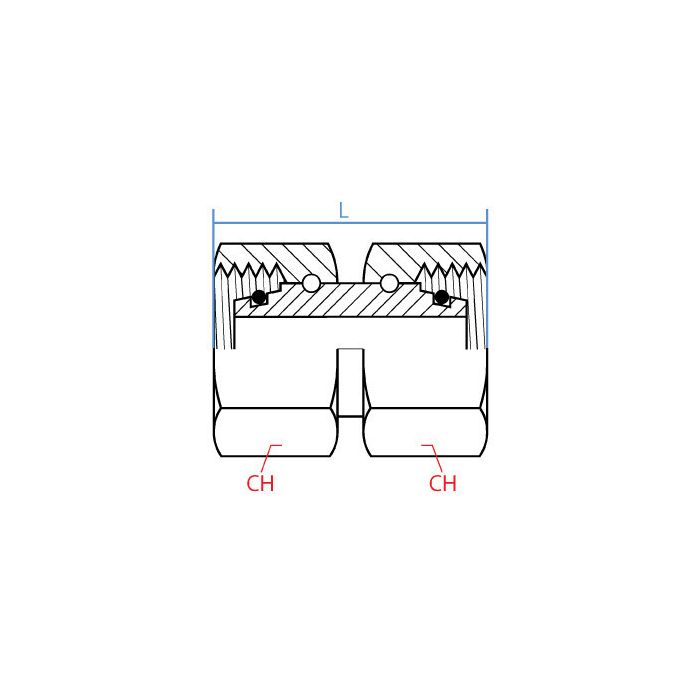

Female Din Soft Seal Union

CH1 Width 16mm	CH2 Width 11mm	L Length 38.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M12 X 1.5	Side 1 Gender F	Side 1 Size L06	Side 1 Type Din Tube	Side 2 Callout M12 X 1.5	Side 2 Gender F	Side 2 Size L06	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5300L-06	Product Weight 0.11 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to swap out a union on a DIN tube line, is this one female on both sides and the same thread both ends?

Question by: Sherry O on Mar 6, 2026, 12:16 PM

Both ends are female DIN tube style, size L06, and the callout is M12 x 1.5 on side 1 and side 2. It is a straight steel union, so it is meant to join two matching male DIN tube ends with that same M12 x 1.5 connection.

Answer by: Customer Support on Mar 8, 2026, 6:39 AM
