Metric Tube Cap

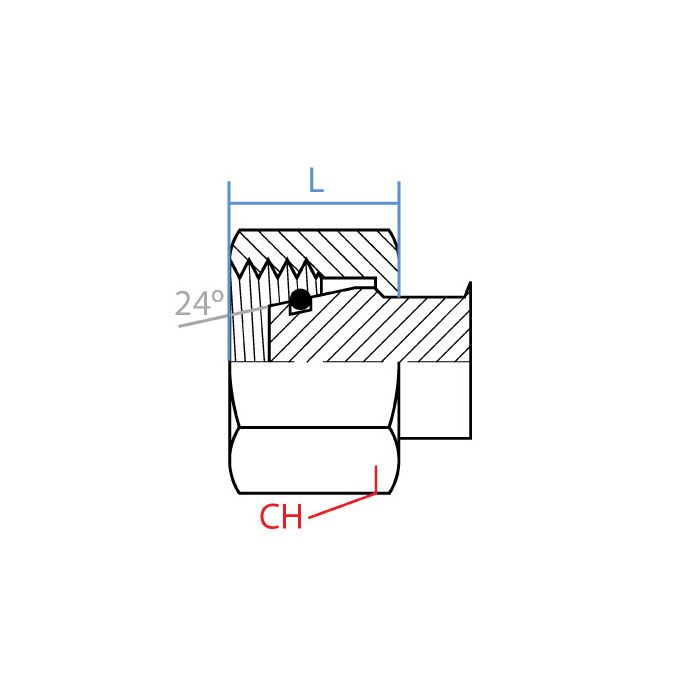

CH Width 46mm	L Length 29mm	Adaptall Material Steel	Adaptall Shape Cap	Side 1 Callout M42 X 2.0	Side 1 Gender F	Side 1 Size S30	Side 1 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5204S-30	Product Weight 0.90 lbs

Product Questions & Answers 2

Product Questions & Answers

What size tubing does this cap fit onto, and is it a metric thread?

Question by: Randy R on May 5, 2025, 6:39 AM

metric all the way. The cap is threaded for M42 X 2.0 DIN tube connections, so it fits right onto standard metric DIN tube ends at that thread spec. The side designation is S30, which corresponds to that 42mm thread callout. If your tube end matches M42 X 2.0 DIN, this cap will seat on it no problem.

Answer by: Customer Support on May 7, 2025, 6:22 AM

got a din tube with M42 x 2.0 threads, is this cap the right match or am i off a size

Question by: Wes R on Dec 30, 2025, 12:47 PM

The key callout is M42 x 2.0 on a DIN tube connection, and this cap is female on Side 1 with that exact M42 x 2.0 thread. Side 1 size is listed as S30.

Answer by: Customer Support on Dec 31, 2025, 3:59 PM
