Metric Tube Cap

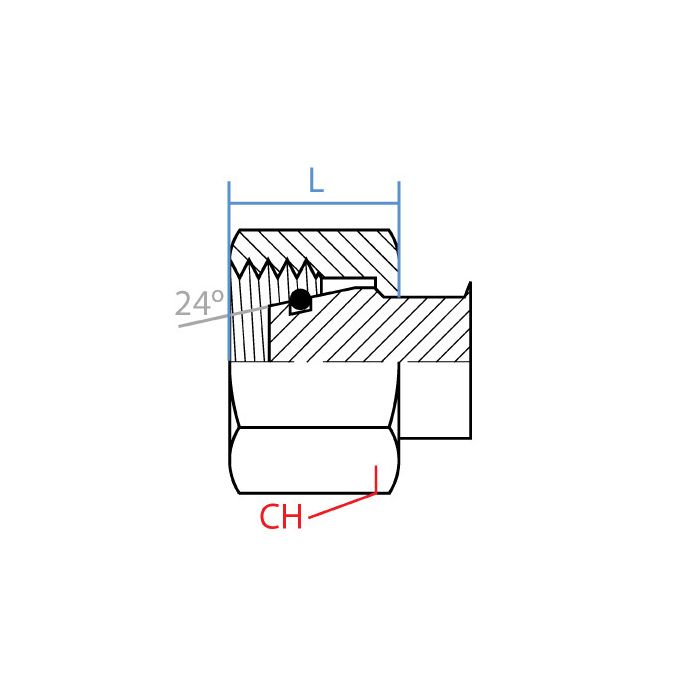

CH Width 24mm	L Length 20.5mm	Adaptall Material Steel	Adaptall Shape Cap	Side 1 Callout M22 X 1.5	Side 1 Gender F	Side 1 Size S14	Side 1 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08734034, Alternate Part Number MINO-03671X96017	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5204S-14	Product Weight 0.20 lbs

Product Questions & Answers 1

Product Questions & Answers

got a DIN tube line that needs capping off -- this the right part for an M22 x 1.5 thread?

Question by: Brent P on Nov 6, 2025, 6:29 PM

Yeah, that's the one. The 5204S-14 has a female DIN tube connection with an M22 x 1.5 thread, so it'll terminate that line clean. Steel construction, 20.5mm length, 24mm across the wrench flats. Solid fit for standard DIN tube applications.

Answer by: Customer Support on Nov 8, 2025, 6:07 AM
