Metric Tube Cap

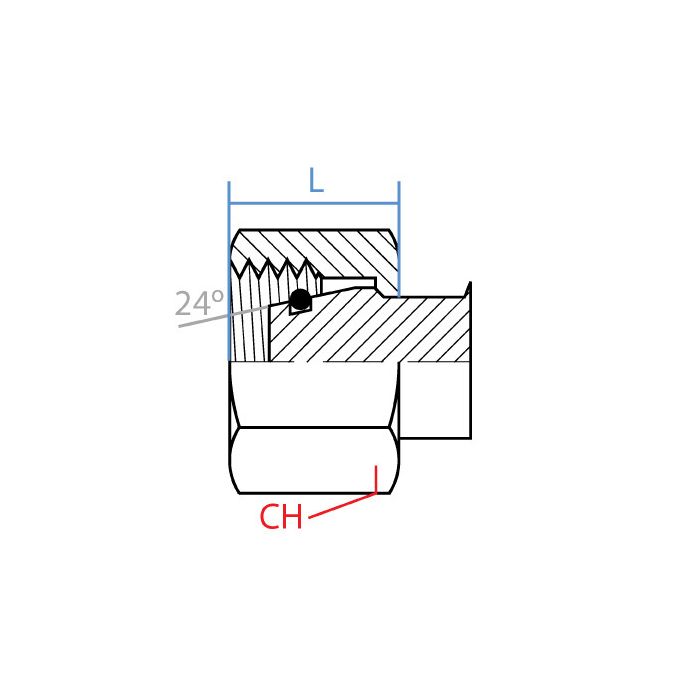

CH Width 50mm	L Length 24mm	Adaptall Material Steel	Adaptall Shape Cap	Side 1 Callout M45 X 2.0	Side 1 Gender F	Side 1 Size L35	Side 1 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5204L-35	Product Weight 0.25 lbs

Product Questions & Answers 3

Product Questions & Answers

got an L35 DIN tube port sitting open right now, is this cap the right one or am I off a size

Question by: Steve G on Jun 22, 2025, 2:10 PM

For an L35 DIN tube connection, this cap matches that sizing callout and is meant to seal an unused DIN tube port. The thread on the cap is female M45 x 2.0, so it is a fit when your port uses that DIN tube size and thread.

Answer by: Customer Support on Jun 24, 2025, 11:41 AM

What size tubing does this cap fit?

Question by: Melvin S on Feb 20, 2026, 9:33 AM

Use-case-first. This cap is designed for use with L35 sized DIN tubing, which corresponds to the tube outside diameter per DIN standards.

Answer by: Customer Support on Feb 22, 2026, 8:25 AM

Got a DIN port on a hydraulic manifold that ain't being used right now, what size thread am I looking at to cap it off with this fitting?

Question by: Lyle J on Feb 9, 2026, 11:39 AM

For an L35 DIN tube connection, the thread on this cap is M45 x 2.0 female. That's what mates up to the male port on your manifold. The cap itself is steel, 24mm long, and you'll need a 50mm wrench to snug it down proper.

Answer by: Customer Support on Feb 11, 2026, 6:13 AM
