Metric Tube Cap 5204L-12

Specifications

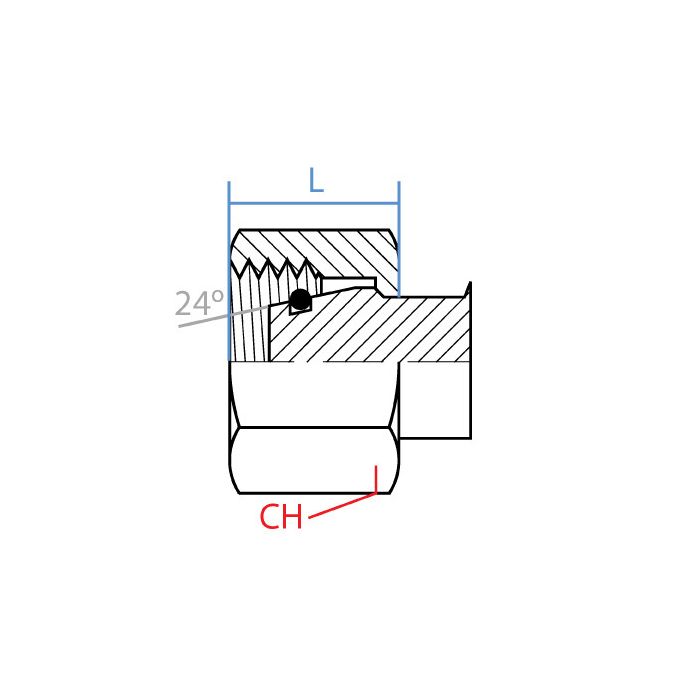

CH Width 22mm	L Length 15.5mm	Adaptall Material Steel	Adaptall Shape Cap	Side 1 Callout M18 X 1.5	Side 1 Gender F	Side 1 Size L12	Side 1 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07585303, Alternate Part Number MINO-03671X00273	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5204L-12	Product Weight 0.25 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to cap off an M18 x 1.5 DIN tube port, is this the right one?

Question by: Curt P on Aug 11, 2025, 8:39 PM

The key callout on this cap is an M18 x 1.5 female DIN tube connection (size L12), so it matches an M18 x 1.5 DIN tube male end.

Answer by: Customer Support on Aug 13, 2025, 6:09 AM

What size tubing does this cap fit? Is it for 12mm OD?

Question by: Glen M on Jan 19, 2026, 1:23 PM

That cap fits metric tube sized at M18 X 1.5, which Adaptall refers to as L12.

Answer by: Customer Support on Jan 20, 2026, 1:35 PM

Steel cap for a M18 x 1.5 DIN tube fitting -- trying to figure out if the 5204L-12 would plug off an L12 line while a section's down for maintenance. That right?

Question by: Jerry W on Aug 3, 2025, 8:37 PM

For capping off an L12 DIN tube port during downtime, this is exactly what that part is made for. The female M18 x 1.5 DIN tube connection seats onto the tube end and seals it off. The soft seal design helps it hold without needing anything extra. At 22mm across and 15.5mm in length, it's a compact fit that won't get in the way on a crowded manifold or tight hydraulic connections run.

Answer by: Customer Support on Aug 5, 2025, 11:44 AM
