Metric Tube Cap 5204L-10

Specifications

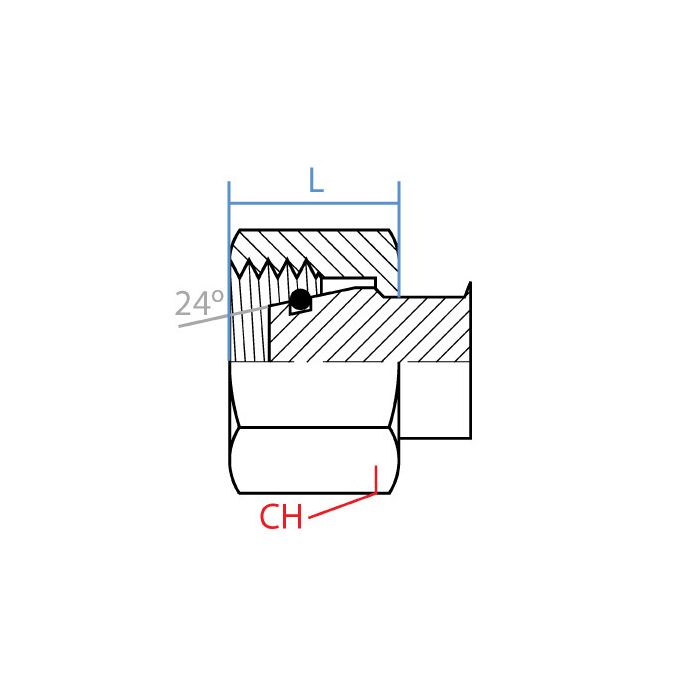

CH Width 19mm	L Length 15.5mm	Adaptall Material Steel	Adaptall Shape Cap	Side 1 Callout M16 X 1.5	Side 1 Gender F	Side 1 Size L10	Side 1 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08734025, Alternate Part Number MINO-03671X96016	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5204L-10	Product Weight 0.01 lbs

Product Questions & Answers 4

Product Questions & Answers

trying to cap off a DIN tube port, is this the one with M16 x 1.5 female threads?

Question by: Shawn S on Jan 21, 2026, 10:49 AM

The key callout on this cap is a female M16 x 1.5 DIN tube connection on side 1, listed as size L10.

Answer by: Customer Support on Jan 23, 2026, 6:24 AM

fitting says M16 x 1.5 on the thread side, that match up with standard DIN tube fittings?

Question by: Cheryl H on Jan 19, 2026, 1:49 PM

M16 x 1.5 is the thread callout on the female DIN tube side, so yes, it seats onto a standard DIN tube end at that specification. The cap is an L10 size, which corresponds to that thread designation in the DIN metric tube fitting system. As long as your open port is an M16 x 1.5 DIN tube fitting, this cap closes it off cleanly.

Answer by: Customer Support on Jan 20, 2026, 6:21 PM

What size wrench do I need for this lil' feller?

Question by: Ray W on Apr 5, 2025, 6:42 AM

You'll need a 19mm wrench for the flats on this metric tube cap.

Answer by: Customer Support on Apr 6, 2025, 8:30 PM

got an L10 metric tube sittin open on my manifold right now, will this cap thread right onto it?

Question by: Neil A on Apr 16, 2025, 7:51 AM

M16 x 1.5 is the thread size on this cap, and it's sized specifically for L10 DIN tube connections. If your open port matches those specs, it'll seat without any adapter or extra hardware needed.

Answer by: Customer Support on Apr 17, 2025, 2:37 PM
