Din Metric Tube Plug Heavy

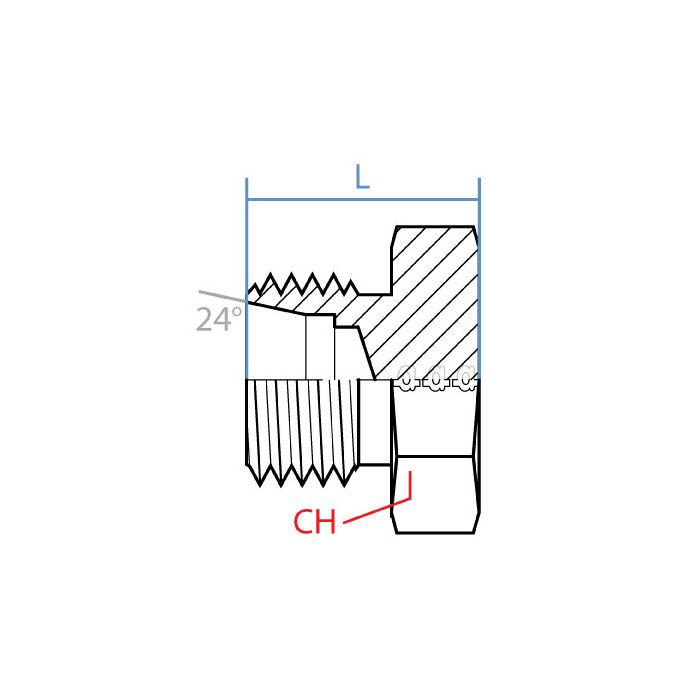

CH Width 46mm	L Length 34mm	Adaptall Material Steel	Adaptall Shape Plug	Side 1 Callout M42 X 2.0	Side 1 Gender M	Side 1 Size S30	Side 1 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5203S-30	Product Weight 0.61 lbs

Product Questions & Answers 3

Product Questions & Answers

got a din tube setup that takes an S30, is this plug the right one or am i off a size

Question by: Patty G on Sep 2, 2025, 4:10 PM

For an S30 DIN tube connection, the match points are the S30 size callout and the M42 x 2.0 male thread on the plug. This one is a steel DIN tube plug with Side 1 listed as S30, Type DIN Tube, Gender M, and thread M42 x 2.0.

Answer by: Customer Support on Sep 4, 2025, 6:27 AM

what size thread does this plug use and will it fit an S30 din tube port?

Question by: Jimmy B on Jul 17, 2025, 3:33 PM

M42 X 2.0 is the thread spec on this one, and yeah, it's built specifically for S30 Din Tube connections. The 46mm wrench width gives you a solid grip during installation, and at 34mm long it seats well in heavy-duty port applications without sticking out further than needed.

Answer by: Customer Support on Jul 19, 2025, 6:34 AM

Is this plug something that'll hold up in a hydraulic setup on heavy equipment?

Question by: Danny B on Jul 11, 2025, 8:13 AM

Constructed from steel, this plug is designed for robust performance in demanding industrial hydraulic applications.

Answer by: Customer Support on Jul 12, 2025, 3:30 PM
