Din Metric Tube Plug Light 5203L-15

Specifications

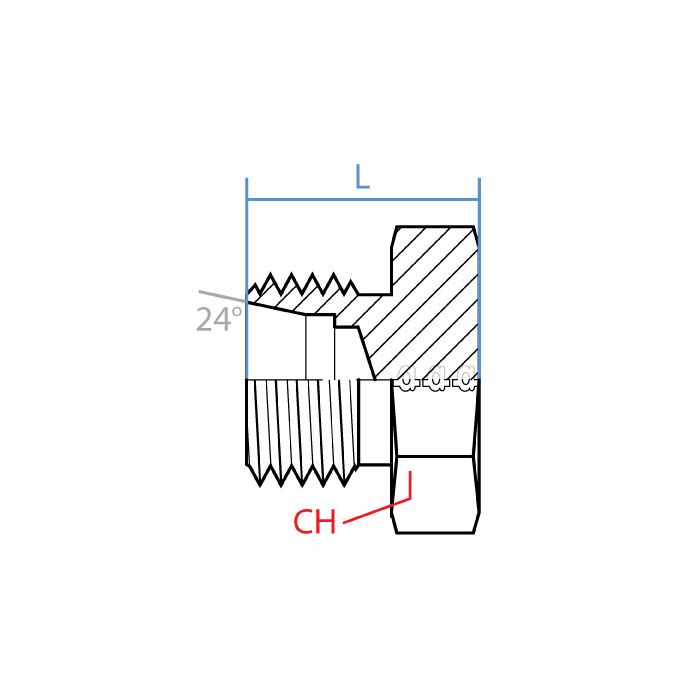

CH Width 24mm	L Length 20mm	Adaptall Material Steel	Adaptall Shape Plug	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size L15	Side 1 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5203L-15	Product Weight 0.11 lbs

Product Questions & Answers 4

Product Questions & Answers

what size thread does this plug use, and is it the male fitting?

Question by: Duane M on Sep 24, 2025, 6:02 PM

M22 x 1.5 is the thread spec, and yes, it's a male fitting. The overall length runs 20mm with a 24mm wrench width, so make sure you've got the right clearance before you go to install it.

Answer by: Customer Support on Sep 26, 2025, 6:00 AM

got a metric tube port that’s M22 x 1.5, is this the right plug for it?

Question by: Hank B on Dec 17, 2025, 7:14 PM

For an M22 x 1.5 DIN tube connection with a male thread, this plug matches that thread callout and gender.

Answer by: Customer Support on Dec 19, 2025, 11:05 AM

Reckon this'll fit a DIN tube with M22 x 1.5 threads? Just wanna make sure before I order it.

Question by: Marvin S on Aug 30, 2025, 5:43 PM

This Adaptall tube plug is made to fit a DIN tube with M22 x 1.5 threads, size L15.

Answer by: Customer Support on Sep 1, 2025, 8:03 AM

what size tube connection does this plug use, M22 x 1.5 right?

Question by: Lynn S on Apr 2, 2025, 11:39 AM

Correct on that. The male connection is M22 x 1.5, which is a standard DIN metric thread. Steel construction, 20mm long and 24mm across the wrench flats, so it fits right in where you need a clean end closure on a metric tube line.

Answer by: Customer Support on Apr 4, 2025, 6:50 AM
