Metric Heavy Series Tube Nut

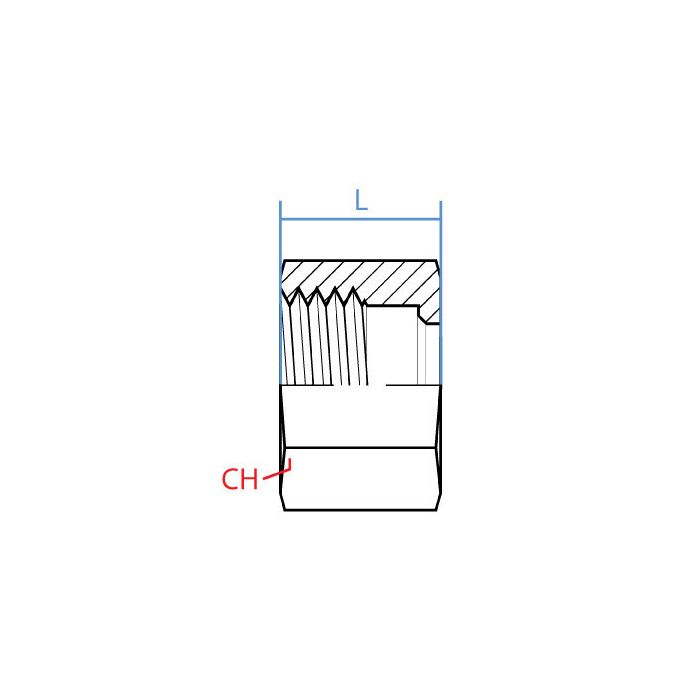

CH Width 30mm	L Length 20.6mm	Adaptall Material Steel	Adaptall Shape Component	Side 1 Callout M24 X 1.5	Side 1 Gender F	Side 1 Size S16	Side 1 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5201S-16	Product Weight 0.15 lbs

Product Questions & Answers 3

Product Questions & Answers

got a DIN tube setup with an M24 x 1.5 male end, is this the nut that matches up?

Question by: Eddie B on Jul 9, 2025, 9:42 AM

The key details are the female DIN tube thread in M24 x 1.5 and the heavy series metric standard. That matches a mating DIN tube fitting with an M24 x 1.5 male thread in the same heavy series system.

Answer by: Customer Support on Jul 10, 2025, 4:44 PM

What size hex wrench do I need to torque this nut down proper, and is the thread M24 x 1.5?

Question by: Roger R on Dec 17, 2025, 8:16 AM

Yeah, you're looking at a 30mm hex width on this one, so you'll need a 30mm wrench or socket to get proper contact on the flats. And the thread is M24 x 1.5 female DIN tube thread, so that checks out. Just make sure whatever fitting you're mating it to is also DIN tube spec and you'll get a solid, leak-resistant seat.

Answer by: Customer Support on Dec 19, 2025, 6:50 AM

Will this here nut work on any M24 tube?

Question by: Harold F on May 17, 2025, 6:51 AM

For a leak-resistant seal, it's gotta be a DIN tube fitting you're connecting to, and it needs that M24 x 1.5 female thread.

Answer by: Customer Support on May 18, 2025, 9:12 AM
