Metric Heavy Series Tube Nut

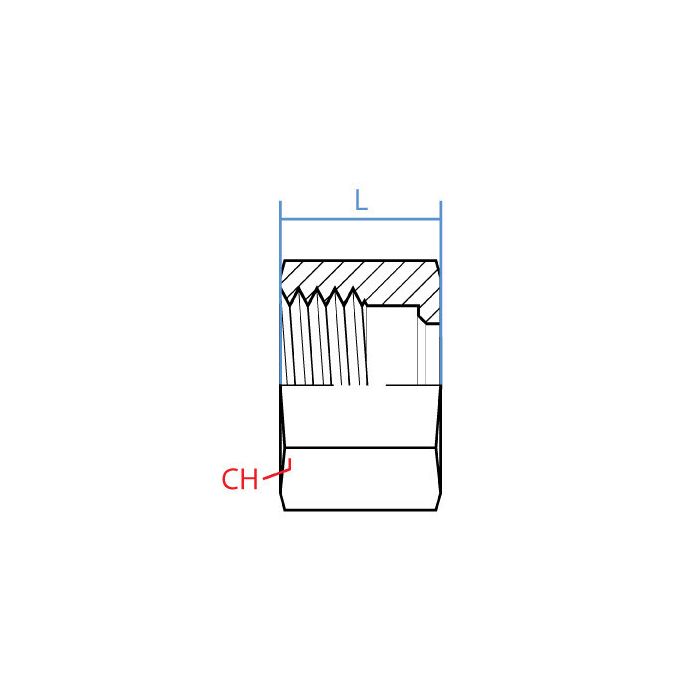

CH Width 24mm	L Length 17.6mm	Adaptall Material Steel	Adaptall Shape Component	Side 1 Callout M20 X 1.5	Side 1 Gender F	Side 1 Size S12	Side 1 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5201S-12	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to match up a tube nut i pulled off, is this one the M20 x 1.5 female for S12 DIN tube?

Question by: Clint L on Jun 9, 2025, 3:35 PM

Match it up by the callouts: Side 1 is M20 x 1.5 with a female thread, and it’s sized for S12 DIN tube.

Answer by: Customer Support on Jun 11, 2025, 10:17 AM

What size tubing does this nut fit, and what's the thread on it?

Question by: Howard R on May 9, 2025, 12:31 PM

Built around an S12 DIN tube connection, this nut threads on at M20 x 1.5. That's a metric fine thread, so make sure whatever you're mating it to matches that pitch before you torque it down.

Answer by: Customer Support on May 11, 2025, 8:42 AM
