Din X M Mm Adj Branch Tee Comp 5169L-06-06-10C

Specifications

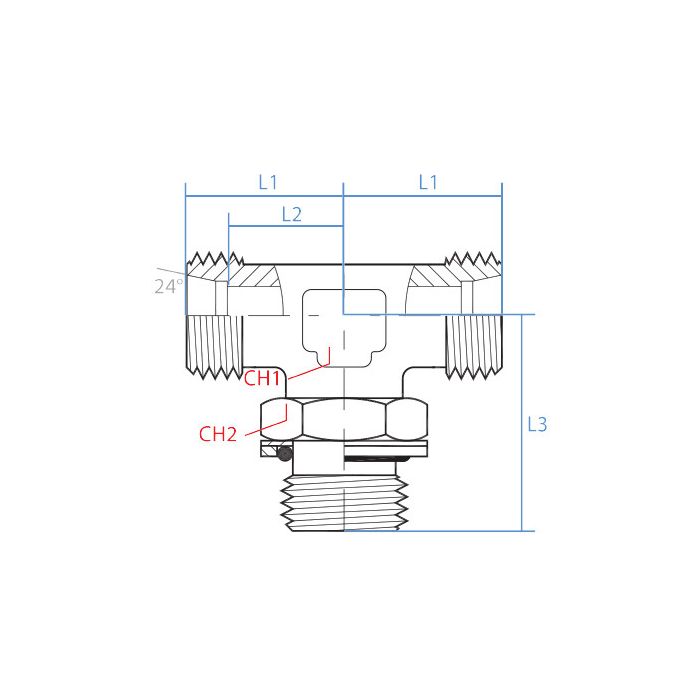

CH1 Width 12mm	CH2 Width 14mm	L1 Length 19mm	L2 Length 12mm	L3 Length 27mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M12 X 1.5	Side 1 Gender M	Side 1 Size L06	Side 1 Type Din Tube	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size L06	Side 2 Type Din Tube	Side 3 Callout M10 X 1.0	Side 3 Gender M	Side 3 Size 10mm	Side 3 Type METRIC	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5169L-06-06-10C	Product Weight 0.11 lbs

Product Questions & Answers 3

Product Questions & Answers

Reckon this'll fit a standard DIN setup?

Question by: Carl W on Mar 15, 2026, 10:50 AM

This tee fitting adapts between DIN tube and metric connections. Side 1 and Side 2 both feature M12 X 1.5 male DIN tube connections with a L06 size. Side 3 features a M10 X 1.0 male METRIC connection with a 10mm size.

Answer by: Customer Support on Mar 16, 2026, 8:59 PM

got a line that splits off to a smaller metric port, does this fitting handle both the DIN tube sides and a 10mm metric branch all in one piece?

Question by: Bonnie Y on Oct 1, 2025, 11:09 AM

That's what this one does. Two sides run M12 x 1.5 male DIN tube connections at L06 size, and the branch port is a M10 x 1.0 male metric connection at 10mm. So you're pulling together two DIN tube lines and one metric line in a single tee body without needing extra adapters stacked together.

Answer by: Customer Support on Oct 2, 2025, 4:51 PM

trying to tie two M12 x 1.5 DIN tube lines together and kick off a smaller leg, is that what this tee is set up for?

Question by: Norm S on Oct 26, 2025, 5:44 PM

Built as a branch tee, it gives you two matching male DIN tube ends on Side 1 and Side 2 at M12 x 1.5 (L06), plus a third male metric port on Side 3 at M10 x 1.0 (10 mm). That layout fits the “two same lines with a smaller branch” setup you’re describing.

Answer by: Customer Support on Oct 28, 2025, 2:16 PM
