Din X M Mm Adj Run Tee Complet

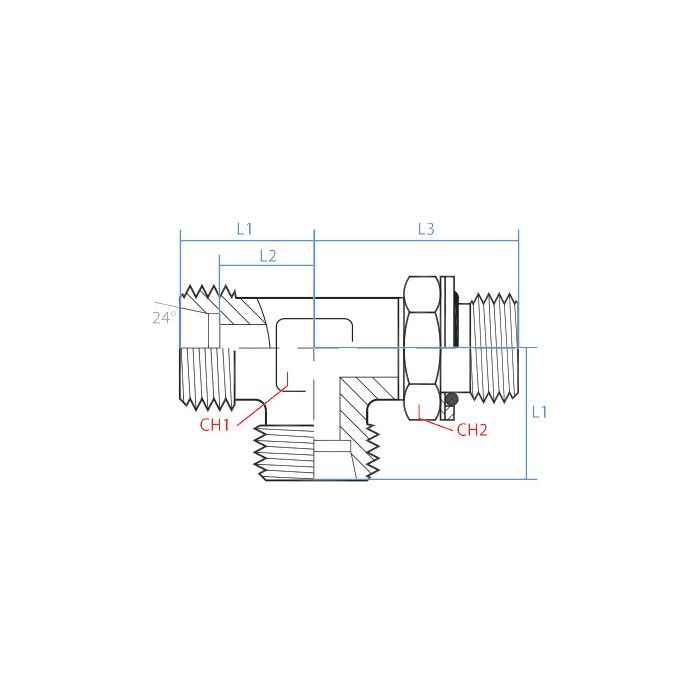

CH1 Width 12mm	CH2 Width 14mm	L1 Length 19mm	L2 Length 12mm	L3 Length 27mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M12 X 1.5	Side 1 Gender M	Side 1 Size L06	Side 1 Type Din Tube	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size L06	Side 2 Type Din Tube	Side 3 Callout M10 X 1.0	Side 3 Gender M	Side 3 Size 10mm	Side 3 Type METRIC	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5168L-06-06-10C	Product Weight 0.01 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a hydraulic line that splits into two DIN connections on one end and needs a metric thread on the branch port, would this tee fitting handle that kind of setup?

Question by: Bonnie K on Mar 27, 2026, 8:25 PM

That's exactly the kind of situation this fitting is built for. Sides 1 and 2 are both M12 x 1.5 male DIN tube ports at L06 sizing, and Side 3 brings in an M10 x 1.0 male metric thread at 10mm. So if your run needs two DIN connections and a metric branch off the same body, this covers all three without adapting each port separately.

Answer by: Customer Support on Mar 29, 2026, 3:29 PM
