Din X Mbspp Adj Branch Tee 5159L-12-12-06

Specifications

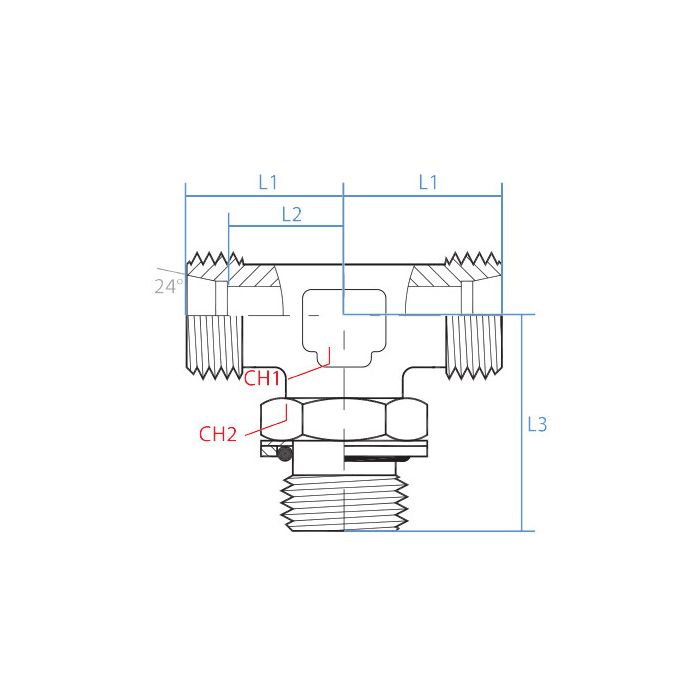

CH1 Width 19mm	CH2 Width 24mm	L1 Length 24mm	L2 Length 17mm	L3 Length 37mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size L12	Side 2 Type Din Tube	Side 3 Callout G 3/8 - 19	Side 3 Gender M	Side 3 Size 3/8"	Side 3 Type BSPP	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5159L-12-12-06	Product Weight 0.26 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a line running DIN tube fittings on both ends and need to branch off to a BSPP port, this tee gonna work for that kind of setup?

Question by: Roger C on Oct 30, 2025, 2:36 PM

That's exactly the kind of job this fitting handles. Both inline ports are M18 x 1.5 DIN tube connections sized at L12, and the branch port is a 3/8 inch BSPP male connection. So if your main line is running L12 DIN tube and you need to tap off to a G 3/8-19 BSPP port, this tee lines up for that application without needing an extra adapter in between.

Answer by: Customer Support on Nov 1, 2025, 6:49 AM

trying to tie two L12 DIN tube lines together and branch off to 3/8 BSPP, is that what this tee is set up for?

Question by: Brenda T on Feb 27, 2026, 9:12 PM

For that layout, it matches up well. Side 1 and Side 2 are both male DIN tube M18 x 1.5 in size L12, and the branch side is a male G 3/8 - 19 BSPP with a 3/8 inch callout.

Answer by: Customer Support on Mar 1, 2026, 4:34 PM

Will this tee work with standard BSPP fittings, or do I need some kind of adapter for that third port?

Question by: Kirk M on Jun 28, 2025, 8:14 AM

This tee is designed to directly accept a 3/8" BSPP fitting on Side 3, so you shouldn't need any adapters for that connection.

Answer by: Customer Support on Jun 30, 2025, 6:11 AM
