Din X Mbspp Adj Branch Tee 5159L-08-08-04

Specifications

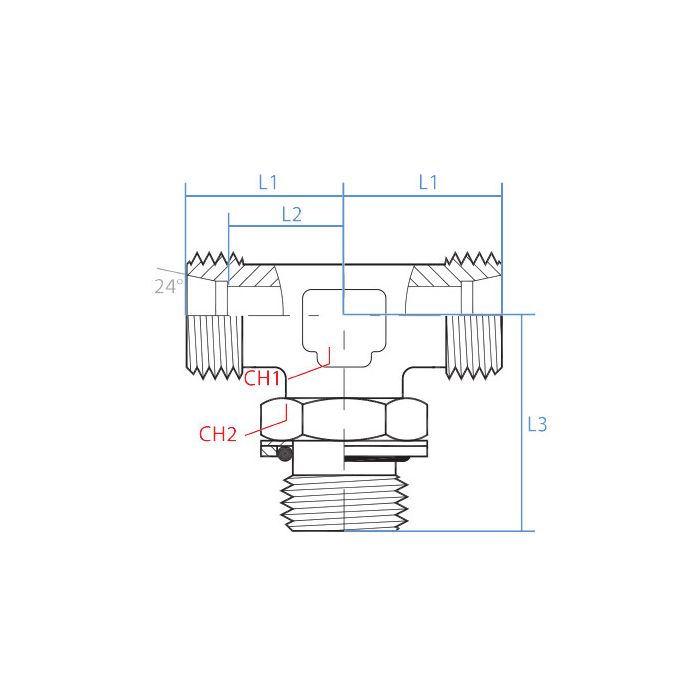

CH1 Width 14mm	CH2 Width 19mm	L1 Length 21mm	L2 Length 14mm	L3 Length 32mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size L08	Side 2 Type Din Tube	Side 3 Callout G 1/4 - 19	Side 3 Gender M	Side 3 Size 1/4"	Side 3 Type BSPP	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5159L-08-08-04	Product Weight 0.14 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a hydraulic line runnin off a DIN tube fitting and need to branch out to a BSPP port, this tee able to handle that kind of mixed connection setup?

Question by: Bonnie P on May 27, 2025, 4:45 PM

Yeah, that's exactly what this fitting is built for. Two of the ports are DIN Tube connections sized at M14 x 1.5, and the third is a male BSPP port at G 1/4. So if you're bridging between those two thread standards in one spot, this tee handles it without needing extra adapters in between. All three connections are male, so keep that in mind when you're planning your mating fittings on the system side.

Answer by: Customer Support on May 29, 2025, 12:46 PM

trying to swap out a tee on my lines, are the two DIN ends on this one both M14 x 1.5 male?

Question by: Cody G on May 25, 2025, 3:02 PM

Both DIN Tube connections are male M14 x 1.5 (size L08), and the branch is a male BSPP G 1/4 - 19 (1/4 inch).

Answer by: Customer Support on May 27, 2025, 6:31 AM

What's the width on these things? I'm kinda tight on space.

Question by: Connie H on Jan 8, 2026, 8:49 PM

The DIN X Mbspp Adj Branch Tee has a compact design. The width at Ch1 is 14mm, and at Ch2 it's 19mm.

Answer by: Customer Support on Jan 10, 2026, 6:47 AM
