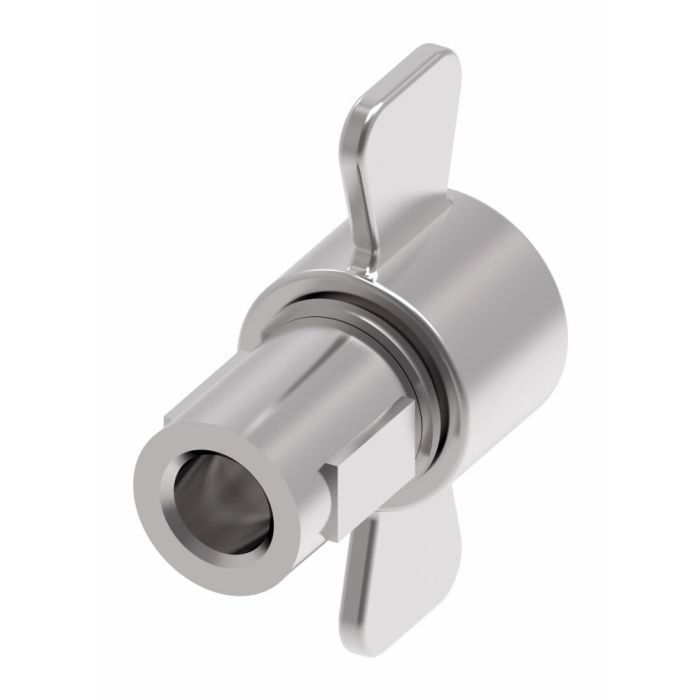

5100 Series Low Spill Connect Under Pressure Quick Disconnect, Female Half, -24 Coupling, 1-1/2-11-1/2 Female Pipe

A 4.02	Air Inclusion Max 0.60 Cubic_centimeter	Application Hydraulics and fluid transfer, On-highway hydraulic wet lines, Dump and refuse vehicles, Bulk liquid transfer	B 5.31	Coupling Size -24	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Gender 2 13555	End Type 1 NPTF	End Type 2 NPTF	Fluid Loss 0.94 Cubic_centimeter	Minimum Working Temperature -40	Safety locking Mechanism None	Seal Material Buna-N	Supplier Part Number 5100-S5-24B	Thread 1 1-1/2-11-1/2	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1BS63, Alternate Part Number MI-00331391, Alternate Part Number MINO-00015F71739	Product Weight 3.57 lbs

Product Questions & Answers 1

Product Questions & Answers

Does this coupling actually hold up when you connect it while the line's still pressurized, or do you have to bleed the system down first?

Question by: Janice K on Mar 25, 2026, 8:33 PM

Pressurized connections are supported up to 500 psi, so you can mate the halves without shutting the system down first. That's one of the bigger advantages on working equipment like dump trucks and refuse vehicles where downtime adds up fast. The tubular valve construction keeps fluid loss to a minimum during disconnection too, which means less mess and less wasted fluid on the ground.

Answer by: Customer Support on Mar 27, 2026, 8:00 PM

Similar Products

Model Number	Coupling Size	Thread 1	Seal Material	A	B
5100-S5-12B	-12	3/4-14	Buna-N	3.09	4.06
5100-S5-20B	-20	1-1/4-11-1/2	Buna-N	3.98	5.19
5100-S5-10B	-10	1/2-14	Buna-N	3.09	4.06
5100-S5-16B	-16	1-11-1/2	Buna-N	3.67	4.38
5100-S5-24B	-24	1-1/2-11-1/2	Buna-N	4.02	5.31
