Din Union Tee Complete

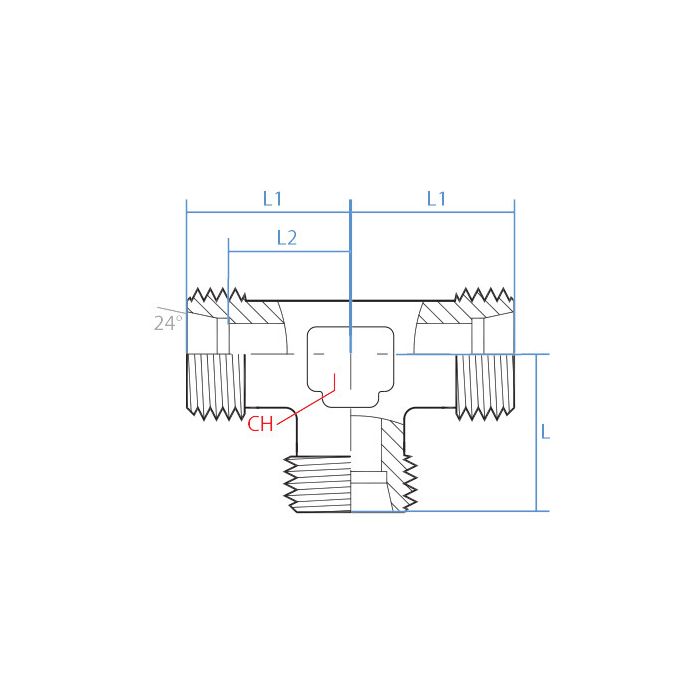

CH Width 37mm	L1 Length 42mm	L2 Length 30mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M36 X 2.0	Side 1 Gender M	Side 1 Size S25	Side 1 Type Din Tube	Side 2 Callout M36 X 2.0	Side 2 Gender M	Side 2 Size S25	Side 2 Type Din Tube	Side 3 Callout M36 X 2.0	Side 3 Gender M	Side 3 Size S25	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5080S-25C	Product Weight 1.17 lbs

Product Questions & Answers 2

Product Questions & Answers

So this is steel, right? Should hold up okay in a shop environment?

Question by: Phil J on Jun 4, 2025, 3:28 PM

Correct, this DIN Union Tee is made from steel, which should offer good durability for typical shop use in hydraulic systems.

Answer by: Customer Support on Jun 6, 2025, 12:40 PM

All three ports on this thing are M36 x 2.0 male, right? Just wanna make sure before I order cause I got female DIN tube fittings on all three legs of my system.

Question by: Roger T on Jul 25, 2025, 6:36 PM

Correct on all three. Every port on the 5080S-25C runs M36 x 2.0 male, so you'll need female DIN tube connections on each leg to mate up properly. All three sides are also rated S25 size, so keep that consistent across your fittings and you should be good to go.

Answer by: Customer Support on Jul 27, 2025, 8:54 AM
