Din Union Tee Complete 5080S-20C

Specifications

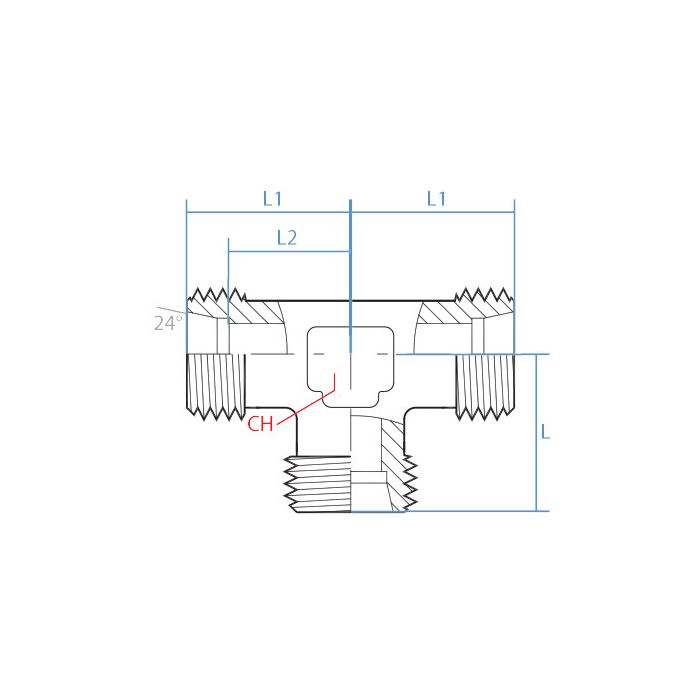

CH Width 27mm	L1 Length 37mm	L2 Length 26.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M30 X 2.0	Side 1 Gender M	Side 1 Size S20	Side 1 Type Din Tube	Side 2 Callout M30 X 2.0	Side 2 Gender M	Side 2 Size S20	Side 2 Type Din Tube	Side 3 Callout M30 X 2.0	Side 3 Gender M	Side 3 Size S20	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5080S-20C	Product Weight 0.70 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to tie three DIN tube lines together, is this tee all the same size on each port?

Question by: Tommy M on Nov 10, 2025, 8:08 PM

All three sides are M30 x 2.0 DIN tube connections, and each side is a male (M) connection in size S20, so it is a true equal tee.

Answer by: Customer Support on Nov 12, 2025, 12:17 PM

All three ports on this tee are M30 x 2.0 DIN tube, male on every side. That right?

Question by: Norm S on Jan 17, 2026, 9:44 AM

Correct on all counts. Every port is M30 x 2.0, DIN tube type, and all three are male connections. So whatever you're tying into needs to accept a male DIN fitting on each branch. That three-way symmetry makes it straightforward to drop into a system where you're splitting or merging flow across multiple lines.

Answer by: Customer Support on Jan 19, 2026, 6:51 AM

Is this tee fitting made outta steel all the way through? Don't want no surprises with different metals inside.

Question by: Wade R on Jul 2, 2025, 6:41 AM

Constructed from steel, this DIN Union Tee Complete is durable, ensuring reliable hydraulic connections without mixing metals.

Answer by: Customer Support on Jul 4, 2025, 6:18 AM
