Din Union Tee

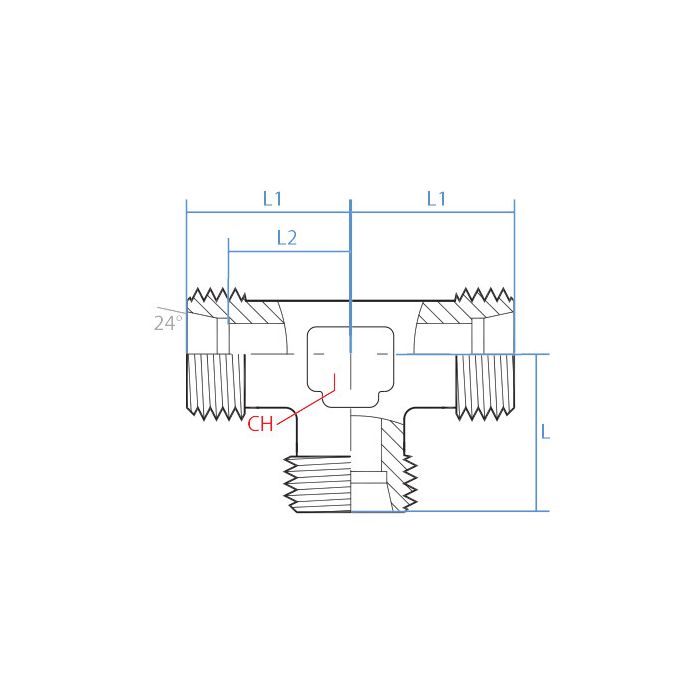

CH Width 19mm	L1 Length 30mm	L2 Length 22mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size S14	Side 1 Type Din Tube	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size S14	Side 2 Type Din Tube	Side 3 Callout M22 X 1.5	Side 3 Gender M	Side 3 Size S14	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5080S-14	Product Weight 0.30 lbs

Product Questions & Answers 1

Product Questions & Answers

All three ports on this tee are M22 x 1.5, right? Just want to make sure before I go ordering a bunch of these for a job we got coming up.

Question by: Rex F on May 14, 2025, 7:28 PM

Correct on all three. Each port carries an M22 x 1.5 thread, and all three sides are male DIN tube connections in the S14 size. So if your lines are set up for that thread on every branch, this tee will tie them together without any adapters in between.

Answer by: Customer Support on May 15, 2025, 8:38 PM
