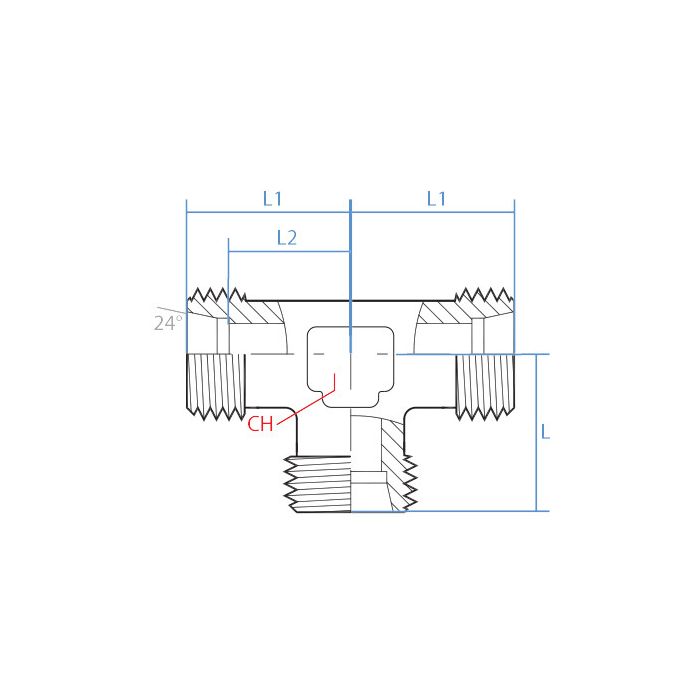

Din Union Tee Complete 5080S-12C

Specifications

CH Width 17mm	L1 Length 29mm	L2 Length 21.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M20 X 1.5	Side 1 Gender M	Side 1 Size S12	Side 1 Type Din Tube	Side 2 Callout M20 X 1.5	Side 2 Gender M	Side 2 Size S12	Side 2 Type Din Tube	Side 3 Callout M20 X 1.5	Side 3 Gender M	Side 3 Size S12	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5080S-12C	Product Weight 0.29 lbs

Product Questions & Answers 3

Product Questions & Answers

All three ports on this tee are the same size and thread, right? Just want to make sure I ain't gotta mess with any adapters to get it runnin in a straight branch setup.

Question by: Randy H on Jun 27, 2025, 5:52 PM

Every port on this fitting carries an M20 x 1.5 male DIN tube connection at the S12 size callout, so all three sides match up without needing any additional adapters at the junction. That symmetrical layout is exactly what makes it practical for branching a hydraulic line cleanly in one spot.

Answer by: Customer Support on Jun 29, 2025, 6:31 AM

Reckon this tee fitting would hold up alright in a hydraulic setup that's runnin' pretty much non-stop?

Question by: Shane M on Apr 6, 2026, 7:44 AM

This fitting is constructed from steel, so it offers good durability for demanding hydraulic applications where you need a reliable branch point.

Answer by: Customer Support on Apr 8, 2026, 6:25 AM

trying to tee off a tube run, are all three ends on this thing the same size or am i gonna need adapters

Question by: Dale C on Jan 29, 2026, 5:20 PM

All three ports are the same connection. Each side is an S12 DIN tube male with an M20 x 1.5 thread, so it is set up for a straight three way branch without mixing sizes.

Answer by: Customer Support on Jan 30, 2026, 5:44 PM
