Din Union Tee

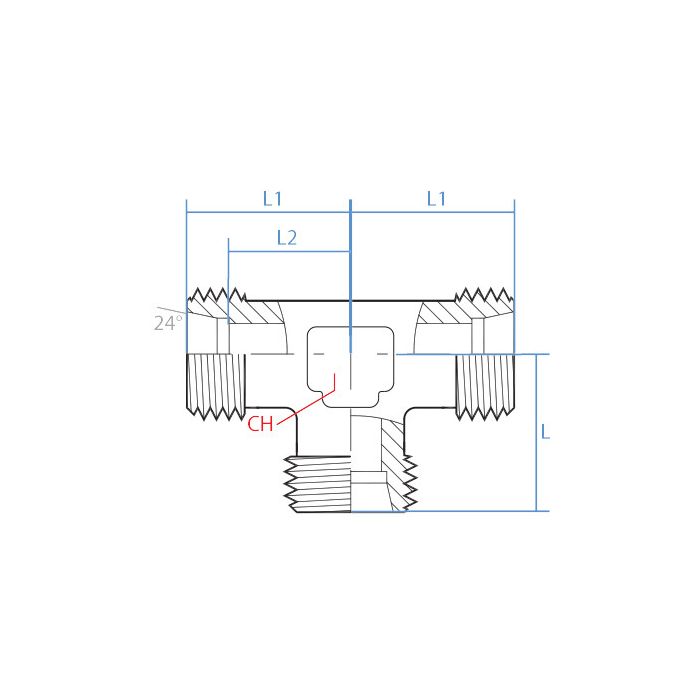

CH Width 17mm	L1 Length 29mm	L2 Length 21.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M20 X 1.5	Side 1 Gender M	Side 1 Size S12	Side 1 Type Din Tube	Side 2 Callout M20 X 1.5	Side 2 Gender M	Side 2 Size S12	Side 2 Type Din Tube	Side 3 Callout M20 X 1.5	Side 3 Gender M	Side 3 Size S12	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5080S-12	Product Weight 0.29 lbs

Product Questions & Answers 1

Product Questions & Answers

all three ports on this tee the same thread size and connection type?

Question by: Rusty W on Feb 27, 2026, 6:29 PM

Every port on the 5080S-12 runs M20 x 1.5 male DIN tube, so you're not dealing with mixed threads or adapters on any leg of the tee. All three sides are identical in callout, gender, and size. That makes it a true union tee for same-size DIN tube runs rather than a reducing or transition fitting.

Answer by: Customer Support on Mar 1, 2026, 1:57 PM
