Din Union Tee

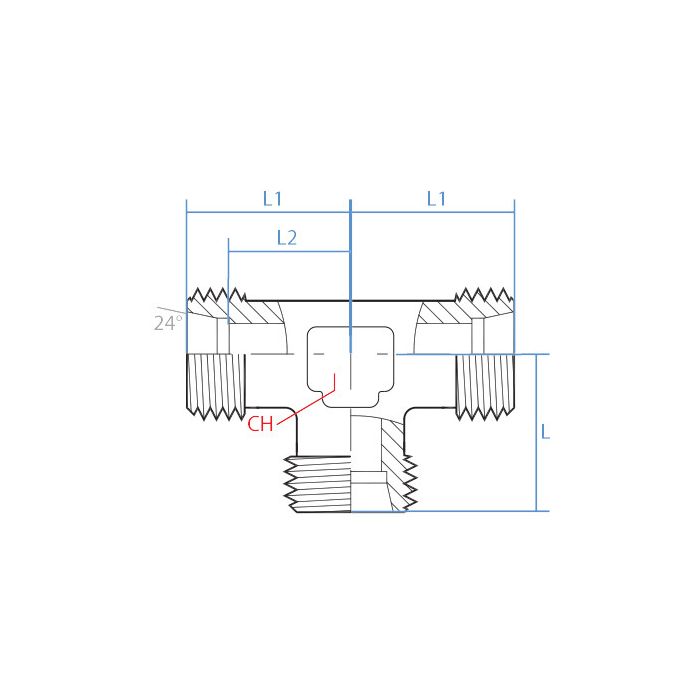

CH Width 24mm	L1 Length 31mm	L2 Length 23.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M26 X 1.5	Side 1 Gender M	Side 1 Size L18	Side 1 Type Din Tube	Side 2 Callout M26 X 1.5	Side 2 Gender M	Side 2 Size L18	Side 2 Type Din Tube	Side 3 Callout M26 X 1.5	Side 3 Gender M	Side 3 Size L18	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5080L-18	Product Weight 0.46 lbs

Product Questions & Answers 2

Product Questions & Answers

All three ports on this tee, they're all the same size and thread, right? Just want to make sure before I go orderin' it.

Question by: Roger W on Feb 23, 2026, 8:25 AM

Every port on the 5080L-18 runs M26 x 1.5 male DIN tube, L18 size, all the way around. No mixing of sizes or thread pitches on this one. If your system calls for a uniform three-way split at that spec, this fits the bill straight out of the box.

Answer by: Customer Support on Feb 24, 2026, 6:07 PM

What's the tee made of? Just wanna make sure it'll hold up.

Question by: Danny C on Feb 18, 2026, 7:34 AM

The tee is made of steel, so it's designed for robust performance.

Answer by: Customer Support on Feb 20, 2026, 6:37 AM
