Din Union Tee

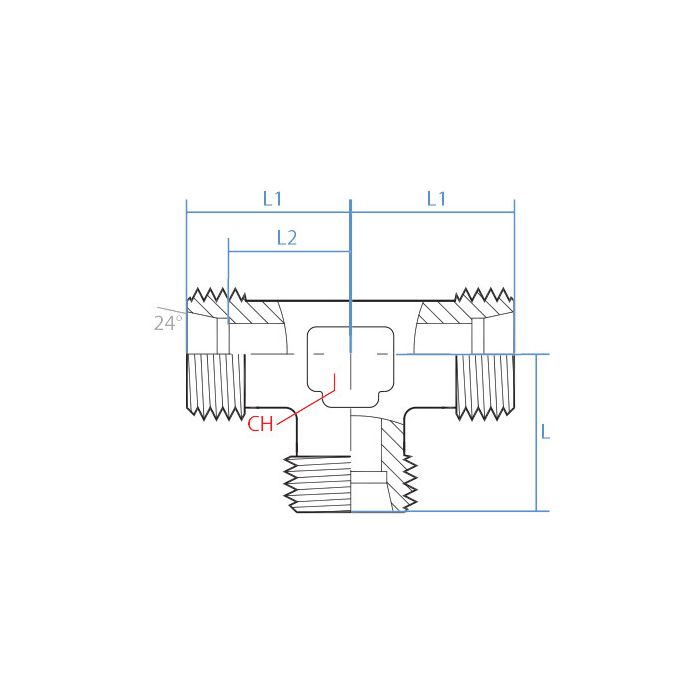

CH Width 19mm	L1 Length 28mm	L2 Length 21mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size L15	Side 1 Type Din Tube	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size L15	Side 2 Type Din Tube	Side 3 Callout M22 X 1.5	Side 3 Gender M	Side 3 Size L15	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5080L-15	Product Weight 0.29 lbs

Product Questions & Answers 2

Product Questions & Answers

all three ports on this tee the same thread size, M22 x 1.5?

Question by: Neal M on Mar 13, 2026, 6:55 PM

Every port on the 5080L-15 is M22 x 1.5, male DIN tube on all three sides. So whether you're running a straight branch line or splitting flow in multiple directions, you're working with the same thread spec across the board. No mismatched ends to worry about.

Answer by: Customer Support on Mar 15, 2026, 4:49 PM

What size is this tee fitting? Gotta make sure it'll work with my existing setup.

Question by: Brett B on Feb 15, 2026, 10:12 AM

It's designed for use with M22 x 1.5 DIN tubes on all three sides. The Adaptall Side 1, Side 2, and Side 3 Callouts are all M22 x 1.5, with an L15 size designation for each.

Answer by: Customer Support on Feb 17, 2026, 7:59 AM
