Din Union Tee Complete 5080L-12C

Specifications

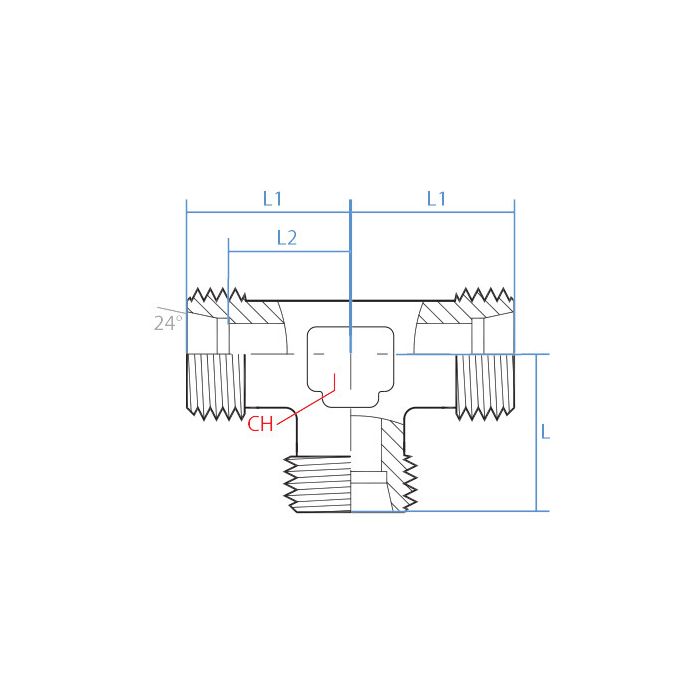

CH Width 17mm	L1 Length 24mm	L2 Length 17mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size L12	Side 2 Type Din Tube	Side 3 Callout M18 X 1.5	Side 3 Gender M	Side 3 Size L12	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5080L-12C	Product Weight 0.18 lbs

Product Questions & Answers 3

Product Questions & Answers

need to split one DIN tube line into two, are all three ends on this tee the same size?

Question by: Duane F on Sep 3, 2025, 7:51 AM

For branching a hydraulic line, this tee keeps it simple because all three ports match. Each side is an M18 x 1.5 male DIN tube connection in size L12, so you are not mixing thread sizes or styles on the run and the branch.

Answer by: Customer Support on Sep 5, 2025, 6:46 AM

Will this tee work okay with regular hydraulic tubing?

Question by: Roger W on Nov 27, 2025, 8:36 AM

This tee is designed for DIN tube connections, specifically with M18 x 1.5 male threads on all three ports. It's intended for systems already using DIN standard fittings.

Answer by: Customer Support on Nov 28, 2025, 10:46 AM

All three ports on this thing are the same size and thread, right? Trying to branch a hydraulic line and I need everything to match up without adapters.

Question by: Ray G on Oct 22, 2025, 5:41 PM

All three ports are identical, M18 x 1.5 male thread with L12 sizing across the board. No mixing, no mismatched ends. If your system is already running DIN tube fittings at that size, you can branch straight off this tee without needing any additional adapters in between.

Answer by: Customer Support on Oct 24, 2025, 12:00 PM
