Din Union Tee

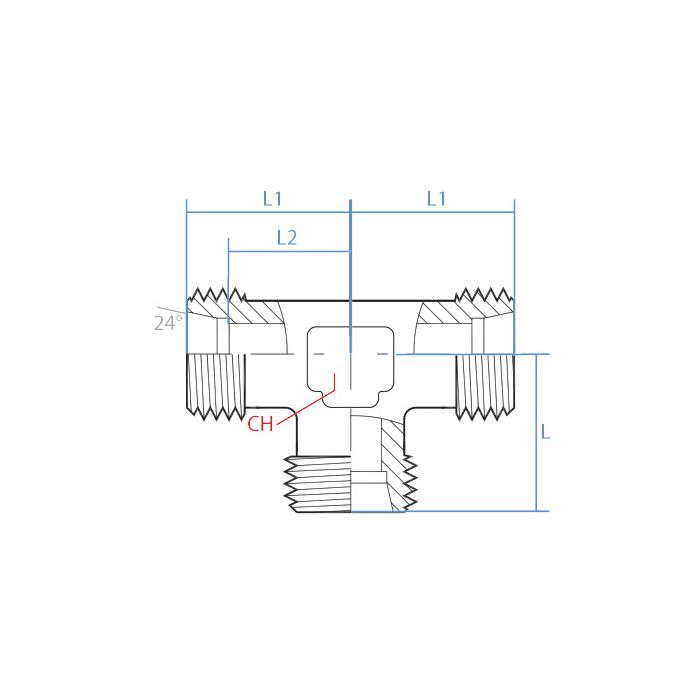

CH Width 12mm	L1 Length 21mm	L2 Length 14mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size L08	Side 2 Type Din Tube	Side 3 Callout M14 X 1.5	Side 3 Gender M	Side 3 Size L08	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5080L-08	Product Weight 0.09 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this tee work with standard DIN fittings?

Question by: Troy E on Apr 17, 2025, 1:04 PM

It is designed for use with DIN tube connections, specifically M14 x 1.5.

Answer by: Customer Support on Apr 19, 2025, 10:23 AM

all three ports on this tee the same thread size and type, or are they mixed?

Question by: Dean P on Dec 18, 2025, 9:46 AM

Every port on the 5080L-08 runs the same spec across the board. All three sides are M14 x 1.5 male DIN tube connections in the L08 size, so you're working with a true union tee. No adapting one end to match another, no mismatched threads to sort out.

Answer by: Customer Support on Dec 20, 2025, 6:42 AM
