90* Din X Male Sae Orb Adj

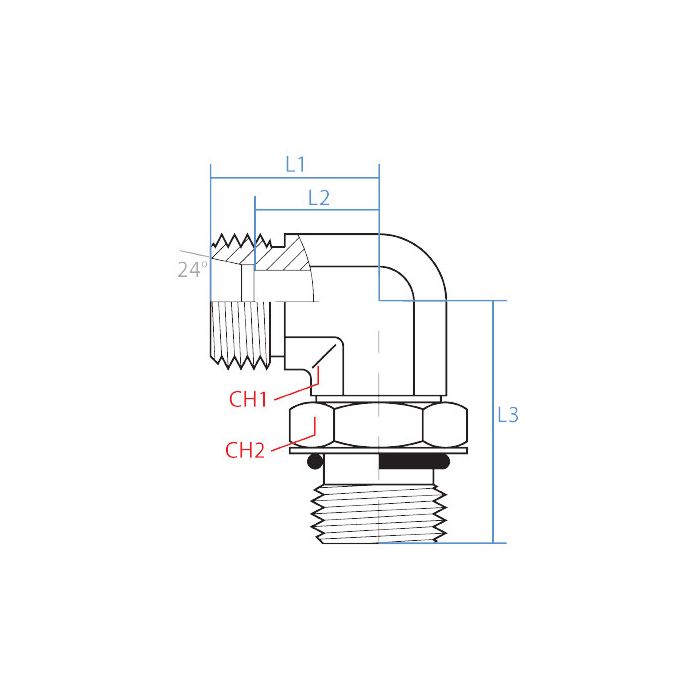

CH1 Width 27mm	CH2 Width 27mm	L1 Length 33mm	L2 Length 24.5mm	L3 Length 47mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M24 X 1.5	Side 1 Gender M	Side 1 Size S16	Side 1 Type Din Tube	Side 2 Callout 7/8 - 14 UNF	Side 2 Gender M	Side 2 Size 5/8"	Side 2 Type Orb-Sae	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5077S-16-10	Product Weight 0.52 lbs

Product Questions & Answers 1

Product Questions & Answers

fitting's got an M24 x 1.5 on one side and a 7/8-14 ORB on the other, that adjustable end, how's it work exactly before you lock it down?

Question by: Tammy P on Oct 24, 2025, 9:15 PM

The ORB side can be rotated to whatever angle works best for your routing before you torque it into final position. That's the whole point of the adjustable feature on that end. Once you get the fitting pointed the right direction and everything lined up, you tighten it down and it stays put. Comes in real handy when you're working in a tight spot and a fixed-angle fitting just won't clear the surrounding hardware.

Answer by: Customer Support on Oct 26, 2025, 12:36 PM
