90* Din X Male Sae Orb Adj

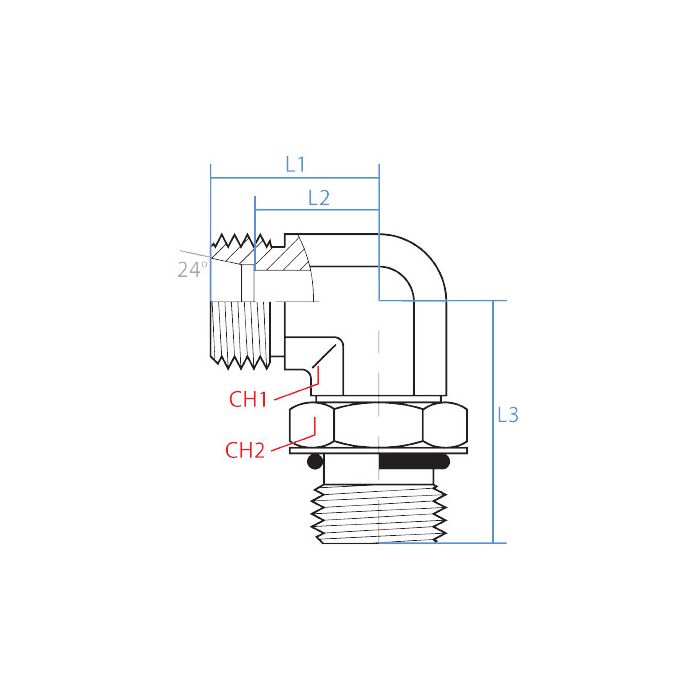

CH1 Width 33mm	CH2 Width 41mm	L1 Length 38mm	L2 Length 30.5mm	L3 Length 53mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M36 X 2.0	Side 1 Gender M	Side 1 Size L28	Side 1 Type Din Tube	Side 2 Callout 1-5/16 - 12 UN	Side 2 Gender M	Side 2 Size 1"	Side 2 Type Orb-Sae	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5077L-28-16	Product Weight 1.02 lbs

Product Questions & Answers 2

Product Questions & Answers

what's the thread size on the SAE side of this fitting, trying to match it up to a port on my hydraulic manifold

Question by: Ralph D on Sep 4, 2025, 10:22 AM

The SAE ORB side runs a 1-5/16 - 12 UN male thread, which is a 1-inch nominal size. That's a pretty common port size on hydraulic manifolds, so it should line up with a standard 1-inch SAE O-ring boss port without much trouble.

Answer by: Customer Support on Sep 5, 2025, 9:09 PM

trying to match up an elbow i pulled off, what are the two thread sizes on this one?

Question by: Dwight M on Nov 27, 2025, 8:06 AM

On the DIN tube side, it is an M36 x 2.0 male connection (Side 1, size L28). On the SAE ORB side, it is a 1-5/16 - 12 UN male connection (Side 2, size 1 inch).

Answer by: Customer Support on Nov 28, 2025, 8:25 PM
