90* Din X Male Npt 5070S-20-12

Specifications

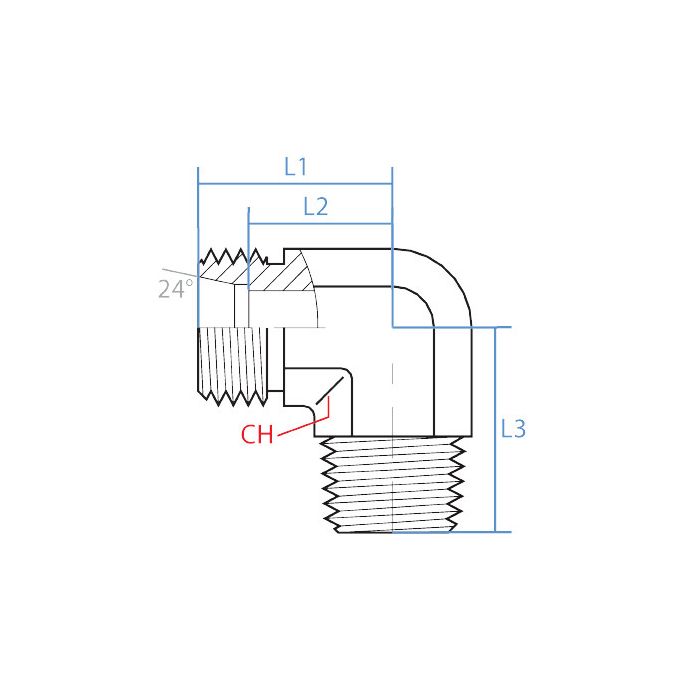

CH Width 27mm	L1 Length 37mm	L2 Length 26.5mm	L3 Length 42mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M30 X 2.0	Side 1 Gender M	Side 1 Size S20	Side 1 Type Din Tube	Side 2 Callout 3/4 - 14 NPTF	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5070S-20-12	Product Weight 0.50 lbs

Product Questions & Answers 3

Product Questions & Answers

got a piece of equipment with a 3/4 NPT port and my hydraulic line runs straight into a wall bracket, will this elbow let me turn that line 90 degrees coming off the port?

Question by: Bobby P on Nov 25, 2025, 6:29 PM

That's exactly the kind of situation this fitting handles. Side two threads into your 3/4"-14 NPTF male port, and side one picks up an M30 x 2.0 DIN tube connection at the S20 size. The 90-degree elbow geometry lets you redirect the hydraulic line at a right angle right off the port, so you're not fighting clearance issues with a straight adapter. The overall footprint is pretty compact too, with the longest dimension coming in at 42mm, so it tucks in close without eating up a lot of space around the connection point.

Answer by: Customer Support on Nov 27, 2025, 6:02 PM

got a tight spot on a hydraulic line, is this the kind of fitting that kicks it over 90 degrees and still goes from DIN to pipe thread?

Question by: Hubert W on Jun 28, 2025, 12:35 PM

Built as a 90° elbow adapter, it redirects the line at a right angle while bridging a DIN tube end to a male NPT port. Side 1 is an M30 x 2.0 male DIN tube connection in S20 sizing, and side 2 is a 3/4 inch 14 NPTF male thread.

Answer by: Customer Support on Jun 30, 2025, 11:38 AM

Would this fitting work to hook up a DIN-sized tube to something with a regular NPT thread?

Question by: Kent T on Sep 9, 2025, 9:45 PM

Yes, this 90-degree elbow adapter is designed to connect a DIN tube end to a male NPT port. It's got an M30 x 2.0 male DIN tube connection on one side (S20 sizing) and a 3/4"-14 NPTF male thread on the other.

Answer by: Customer Support on Sep 11, 2025, 6:55 AM
