90* Din X Male Npt 5070S-12-06

Specifications

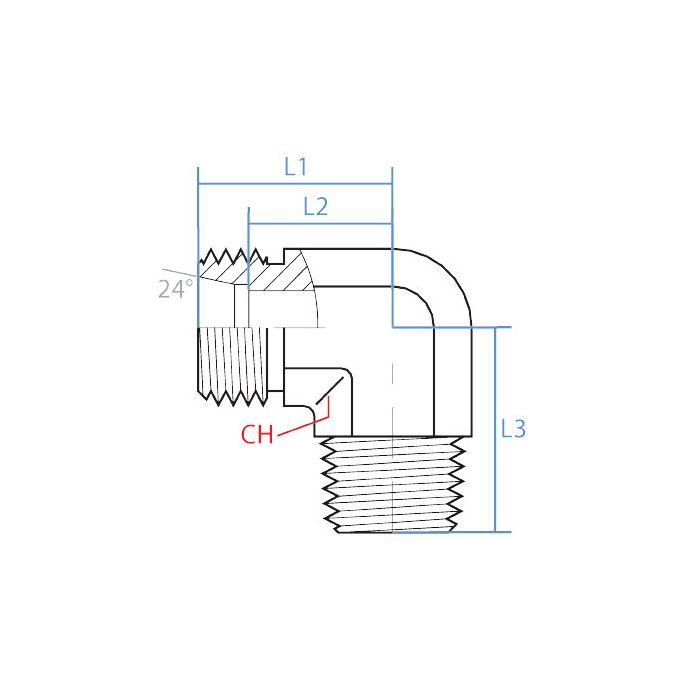

CH Width 17mm	L1 Length 29mm	L2 Length 21.5mm	L3 Length 28mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M20 X 1.5	Side 1 Gender M	Side 1 Size S12	Side 1 Type Din Tube	Side 2 Callout 3/8 - 18 NPTF	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5070S-12-06	Product Weight 0.16 lbs

Product Questions & Answers 3

Product Questions & Answers

Is this fitting steel all the way through?

Question by: Randy E on Apr 16, 2025, 3:47 PM

Yes, this Adaptall fitting is made entirely of steel.

Answer by: Customer Support on Apr 17, 2025, 6:00 PM

trying to hook up a M20 x 1.5 DIN tube to a 3/8-18 NPTF port, is this the right elbow?

Question by: Pete H on Jun 4, 2025, 2:38 PM

For that exact combo, yes. One end is a male M20 x 1.5 DIN tube connection (Side 1, S12) and the other end is a male 3/8 - 18 NPTF thread (Side 2), built as a 90 degree elbow.

Answer by: Customer Support on Jun 5, 2025, 3:11 PM

Got a DIN tube line running M20 x 1.5 that needs to tie into a 3/8 NPT port at a right angle, this the fitting that'd handle that?

Question by: Frank B on May 20, 2025, 7:04 AM

That's what this one's built for. One end connects to an M20 x 1.5 DIN tube, the other side is a 3/8-18 NPTF male thread, and the whole thing bends at 90 degrees. Steel construction, so it holds up well in working hydraulic environments. The 17mm wrench width gives you a decent grip during installation without needing anything oversized.

Answer by: Customer Support on May 21, 2025, 1:06 PM
