90* Din X Male Npt Complete 5070LL-06-02C

Specifications

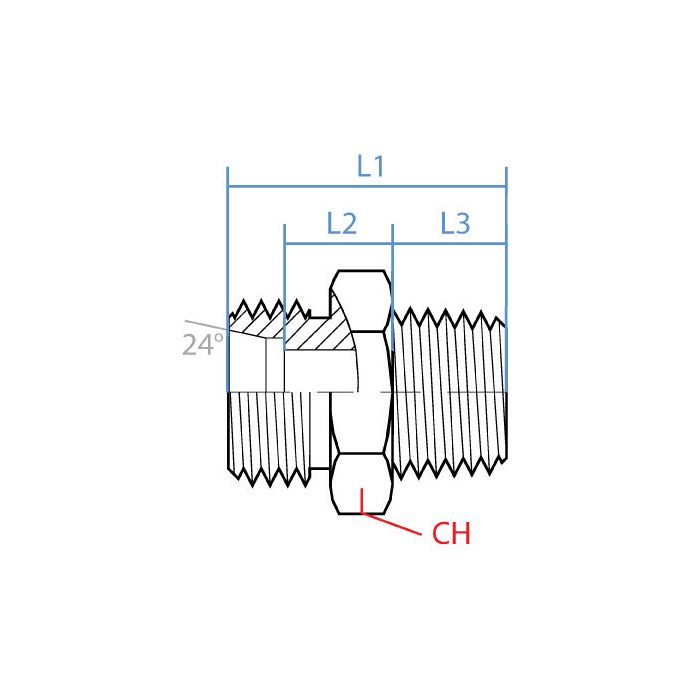

CH Width 17mm	L1 Length 30mm	L2 Length 8mm	L3 Length 15mm	Adaptall Shape Straight	Side 1 Callout M12 X 1.5	Side 1 Gender M	Side 1 Size L06	Side 1 Type Din Tube	Side 2 Callout 1/4 - 18 NPTF	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5070LL-06-02C	Product Weight 0.06 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap a line over, is this the 90 degree adapter that goes from M12 x 1.5 DIN tube (L06) to a 1/4 male NPT?

Question by: Peggy T on Jul 21, 2025, 2:24 PM

For that combo, yes. Side 1 is a M12 x 1.5 DIN tube connection in size L06, and side 2 is a 1/4 inch male NPT with a 1/4 - 18 NPTF callout, built into a 90 degree fitting.

Answer by: Customer Support on Jul 23, 2025, 12:40 PM

Got a metric DIN tube line on one side and need to tie into a 1/4" NPT port on the other end. This fitting gonna work for that?

Question by: Shawn E on Jun 13, 2025, 12:40 PM

That's what this one's built for. Side one is an M12 x 1.5 DIN tube connection at an L06 size, and side two is a 1/4" male NPT with a 1/4-18 NPTF callout. So if you've got a metric DIN tube coming in and a standard NPT port to thread into, this fitting bridges that gap without any adapter stacking.

Answer by: Customer Support on Jun 15, 2025, 7:30 AM

What size is the DIN tube connection on this fitting?

Question by: Merle B on Sep 17, 2025, 4:08 PM

This fitting uses a M12 x 1.5 DIN tube connection, which is an L06 size.

Answer by: Customer Support on Sep 19, 2025, 12:33 PM
