90* Din X Male Npt Complete

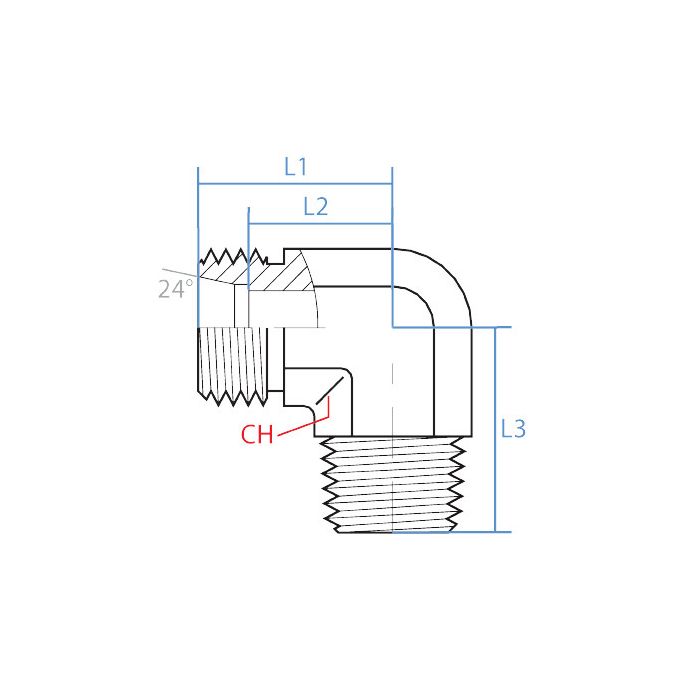

CH Width 14mm	L1 Length 22mm	L2 Length 15mm	L3 Length 27mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout 1/4 - 18 NPTF	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5070L-10-04C	Product Weight 0.10 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a metric DIN tube side and need to tie into a 1/4" NPT port at a right angle, this the fitting that does that?

Question by: Joyce B on Aug 12, 2025, 6:18 AM

That's what this one's built for. One end is an M16 x 1.5 DIN tube connection sized at L10, and the other is a 1/4" male NPT. The 90-degree elbow lets you make that turn right at the connection point, which saves a lot of grief when you're working in a tight spot and can't run a straight line to the port.

Answer by: Customer Support on Aug 13, 2025, 8:53 AM
