90* Din X Male Npt 5070L-06-02

Specifications

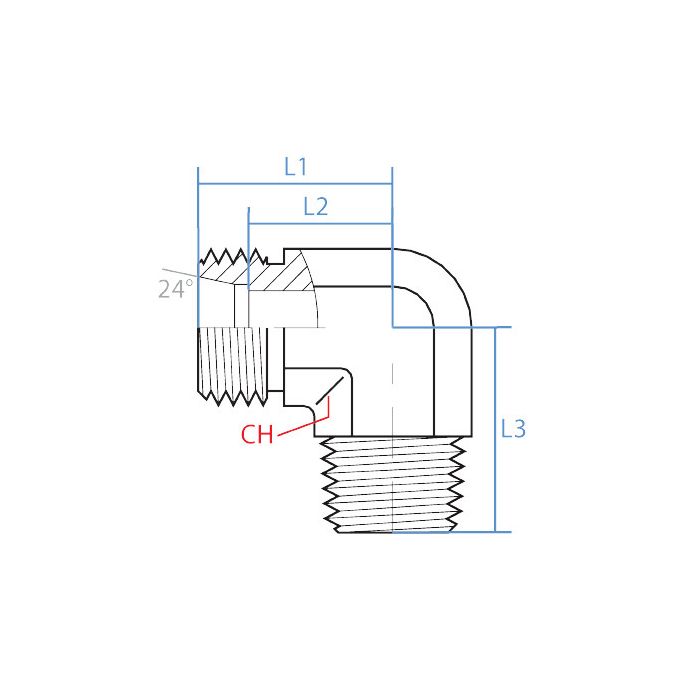

CH Width 12mm	L1 Length 19mm	L2 Length 12mm	L3 Length 20mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M12 X 1.5	Side 1 Gender M	Side 1 Size L06	Side 1 Type Din Tube	Side 2 Callout 1/8 - 27 NPTF	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5070L-06-02	Product Weight 0.06 lbs

Product Questions & Answers 3

Product Questions & Answers

got a DIN tube fitting on a metric line that needs to tie into a 1/8 NPT port, this elbow gonna work for that?

Question by: Frank R on Oct 11, 2025, 1:27 PM

That's exactly the use case this piece covers. One end is an M12 x 1.5 DIN tube connection sized at L06, and the other is a 1/8-27 NPTF male thread. The 90-degree angle lets you redirect the line without needing extra fittings in tight spots. Both sides are male, so make sure your mating ports are female before ordering.

Answer by: Customer Support on Oct 13, 2025, 6:22 AM

Just wanna make sure, this elbow fitting will work to connect a DIN tube to a regular NPT pipe thread, right?

Question by: Patty T on Jul 27, 2025, 9:35 PM

That's correct. This 90° elbow adapter features a DIN tube connection on one side and an NPT connection on the other, letting you hook them up.

Answer by: Customer Support on Jul 29, 2025, 11:53 AM

trying to swap an elbow on a small hydraulic line, is this the one with M12 x 1.5 on the DIN side and 1/8-27 NPTF male on the other?

Question by: Pete P on Aug 18, 2025, 8:31 PM

For a fit check, the DIN tube end on this elbow is M12 x 1.5 in size L06, and the other end is a 1/8 inch 1/8-27 NPTF male thread.

Answer by: Customer Support on Aug 20, 2025, 6:49 AM
