Din X Male Mm Adj Elb Complete 5069L-10-14C

Specifications

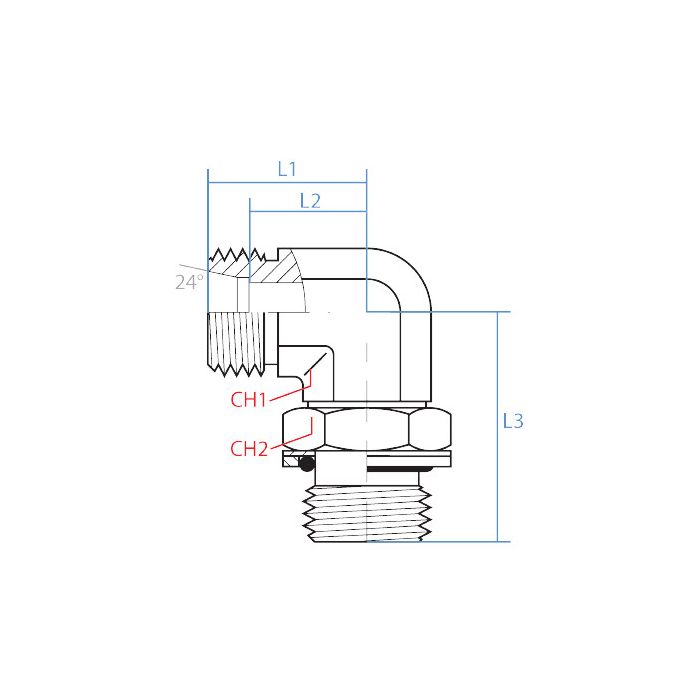

CH1 Width 14mm	CH2 Width 19mm	L1 Length 22mm	L2 Length 15mm	L3 Length 32mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size 14mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5069L-10-14C	Product Weight 0.12 lbs

Product Questions & Answers 3

Product Questions & Answers

So this thing is basically for making a 90 degree turn in a hydraulic line, right? Just wanna make sure I'm understanding it correctly.

Question by: Earl H on Apr 22, 2025, 10:08 AM

That's right. Its main purpose is to provide a 90-degree change of direction between a DIN tube end and a metric male port in your hydraulic system.

Answer by: Customer Support on Apr 24, 2025, 6:53 AM

What exactly is this fitting connecting, like which side goes to the tube and which side threads into the port?

Question by: Tammy B on Jul 1, 2025, 11:41 AM

One end is an M16 x 1.5 male DIN tube side, sized at L10, so that's your connection to the hydraulic tube. The other end is an M14 x 1.5 male metric thread, which screws into a metric female port on your component or manifold. Both sides are male, so make sure your mating connections are female on each end before ordering.

Answer by: Customer Support on Jul 2, 2025, 3:26 PM

trying to swap out an elbow on a tight little hydraulic setup, is this the one that goes from M16 x 1.5 DIN tube (L10) over to a M14 x 1.5 male port?

Question by: Ralph G on Nov 18, 2025, 2:31 PM

The ends on this adapter are M16 x 1.5 male on the DIN tube side in size L10, and M14 x 1.5 male on the metric port side. It is a 90 degree adjustable elbow, so it handles the direction change while still letting you clock it where you need it.

Answer by: Customer Support on Nov 20, 2025, 9:24 AM
